CYP INX-2100-AVLC 4 Port 100m HDBaseT 2.0 HDR Input Card with AVLC - CYP
roll over the image to zoom in

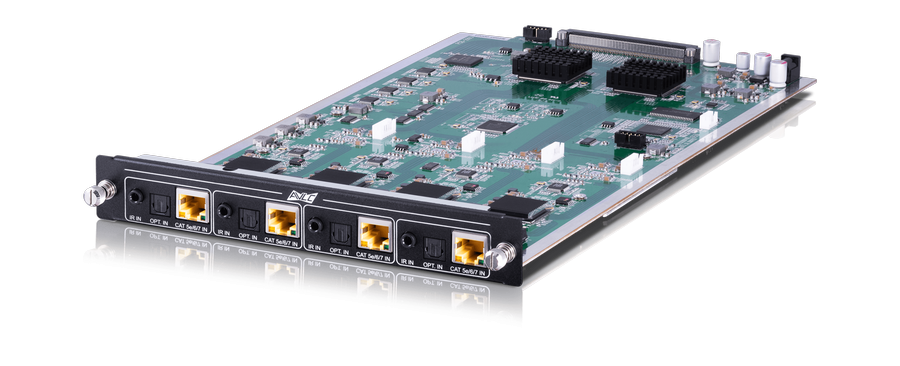

CYP INX-2100-AVLC 4 Port 100m HDBaseT 2.0 HDR Input Card with AVLC
SKU:
CYP INX-2100-AVLC
CYP
,Part of the brand new CYP Modular Matrix series the INX-2100-AVLC is designed to be integrated with the MODX-1616 Modular Matrix. Featuring 4 x HDBaseT inputs capable of receiving video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN from a distance of 100m. HDBaseT 2.0 technology provides advanced signal management ensuring reliable results in the most demanding of installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable.
Despite the 10.2Gbps limitation of HDBaseT technology, this groundbreaking product enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver card enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received from a OUTX-2100-AVLC. The result is a perfect 6G 4K visually lossless image received from the source.

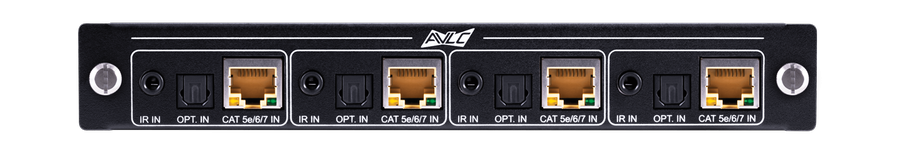

In addition to 4 x 4K UHD HDBaseT 2.0 video inputs, the INX-2100-AVLC features 4 x Digital Optical Toslink Audio Inputs for the transmission of audio independently delivered by the MODX-1616's Input cards. The INX-2100-AVLC interface also features 4 x IR Inputs for added system control.
£2,200.67
£2,589.02
