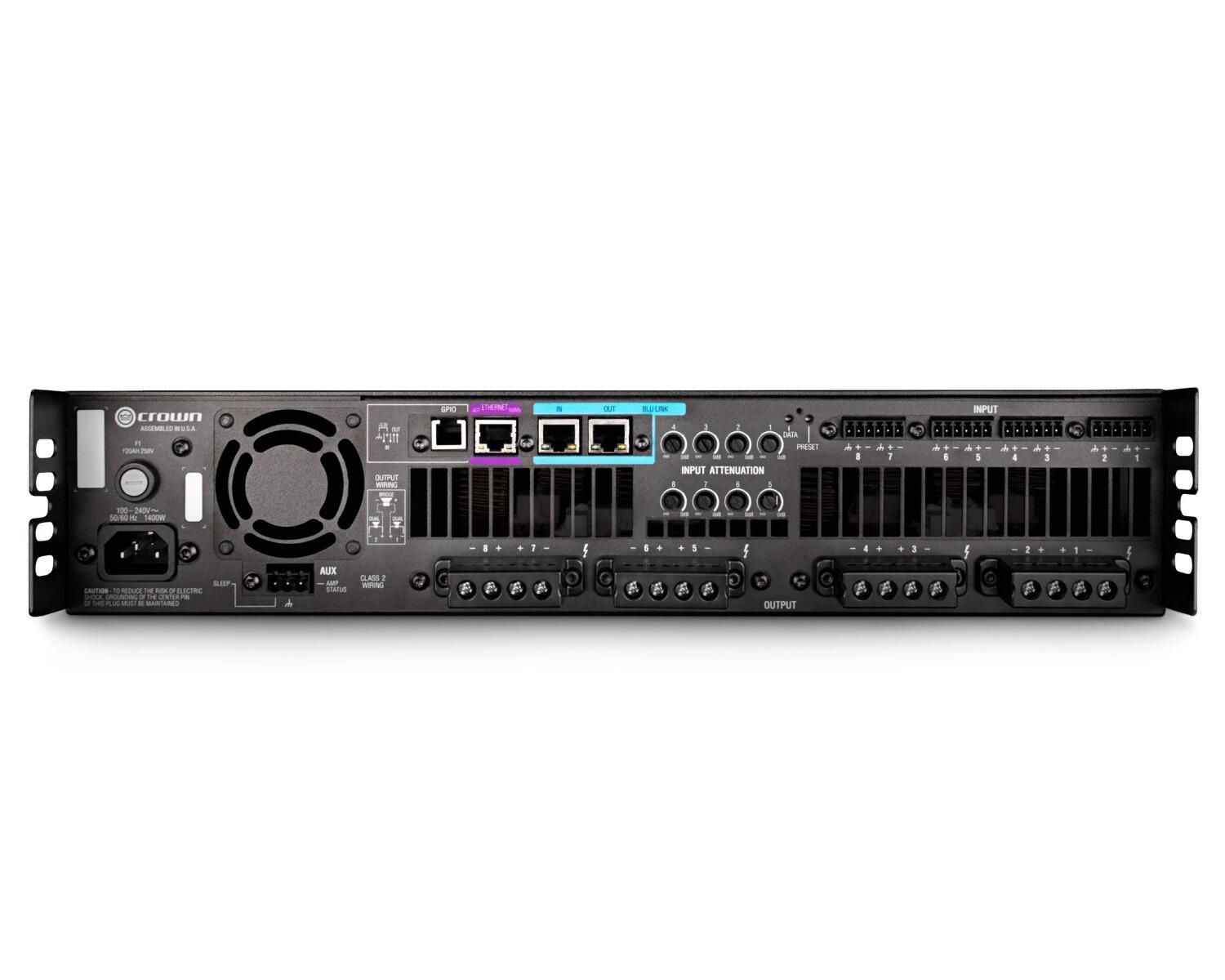

Crown DCi8|300N Power Amplifier

SKU: CRO0310
Crown

The new DriveCore install series amplifiers are a complete line of high-performance installation amplifiers based on proprietary DriveCore technology. DCi Series amplifiers are designed, engineered, and manufactured to the industry,s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

• Part of the new DriveCore Install Network Series
• High performance installation amplifier - 8 x 300W @ 4 Ohms
• Versatile, compact, and highly energy-efficient
• Designed and engineered to the industry's highest quality standards
• Provides system integrators with advanced features and flexibility
• Ideal for any installed sound applications

General

• Frequency Response ( 8 Ohms, 20 Hz - 20 kHz): +/- 0.25 dB
• BLU Link Input Signal to Noise Ratio (A-Weighted): > 104dB
• Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz): 0.35%
• Voltage Gain: 34 dB
• Damping Factor (20 Hz to 100 Hz): >1000
• Input Impedance (nominal balanced, unbalanced): 10 kOhms, 5 kOhms
• Maximum Input Level before Compression: +20 dBu
• Load Impedance (Stereo/Dual Mode): 2 - 16 Ohms; 70Vrms and 100Vrms
• Load Impedance Bridge Mono4 - 16 Ohms; 140Vrms and 200Vrms
• CoolingContinuously variable speed forced air, front to back airflow
• Maximum Fan Noise (re dBA SPL @ 1M)47
• Required AC Mains (+/- 10%)100V-240V ~ 50/60 Hz

Physical & Dimensions

• Height: 3.5
• Width: 19
• Depth: 14.25
• Weight: 23.5lbs
