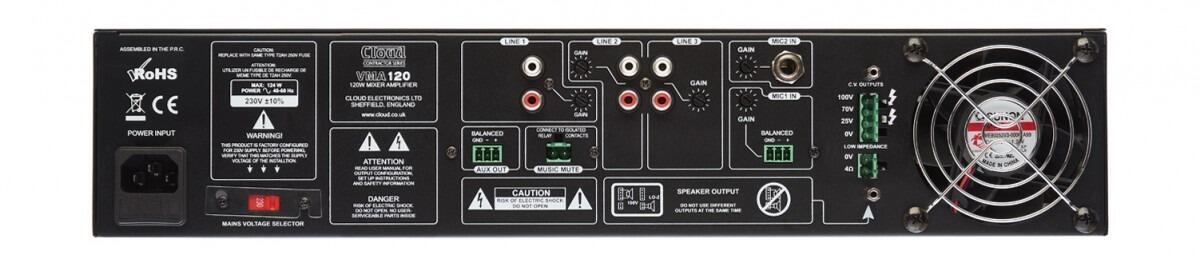

Cloud VMA120 Mixer Amplifier, 120W, 100v

SKU: clo VMA120
Cloud Electronics

The Cloud VMA120 is an cost-effective mixer-amplifiers for use in all types of commercial premises. It has been designed to be as simple to install and operate as possible, but offers a useful range of features and configuration options. The units are mono power amplifiers combined with a simple mixer stage. The output may be used to drive either low-impedance loudspeakers directly (4 ohms minimum) or 25/70/100 V-line loudspeaker distribution systems.

Power output: 120 W/channel
 Outputs suitable for either low-impedance (min. 4 ohm) or 25/70/100 V-line systems

 Four stereo unbalanced line inputs (3 x RCA jack pairs, 1 x 3.5 mm TRS jack on front panel)
 Rear panel line inputs have individual gain controls
 Two balanced mic inputs (1 x multipin connector, 1 x TRS jack), with individual preset gain controls
 Front panel controls for mic and music levels, line input selection, mic EQ, master level and EQ
 Mic input mute switches on front panel
 Line 1 priority, enabled by front panel switch
 Mic-over-music priority, enabled by front panel switch
 15 V phantom power available at either mic input?
 100 Hz high-pass filter on each mic input?
 70 Hz high-pass filter in output stage, for use with 5/70/100 V-line systems
 Fixed limiter prevents clipping
 Front panel LED bargraph indicates output signal level
 Over-temperature and output DC protection
 230 V or 115 V operation
 Forced-air cooling
