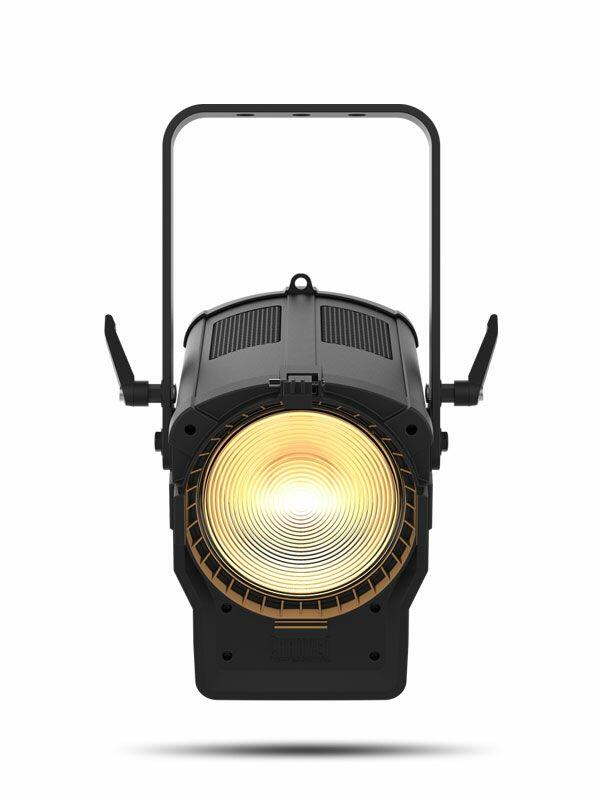

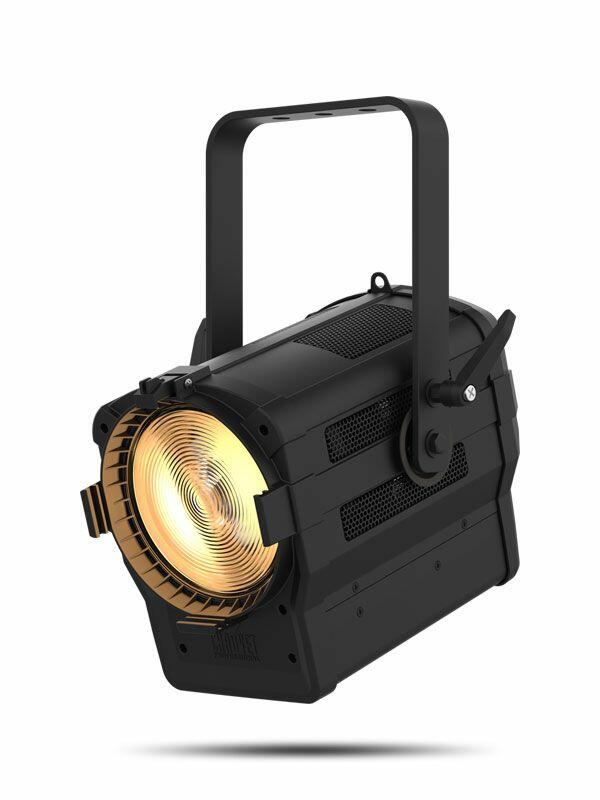

Chauvet Professional Ovation F-145WW LED Fresnel

SKU: CHAUPRO OVATIONF145WW
Chauvet Professional

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16, to 65,, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

• • Chauvet Ovation F145WW?
  • Warm white Fresnel with output comparable to a 6?, 650 W Fresnel
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Motorized zoom angle between 25 to 65, manually or via DMX

OPTICAL

• Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
• Color Temperature (at full): 3096 K
• CRI: 97
• Beam Angle: 16 to 48
• Field Angle: 25 to 65
• Zoom Angle: 25 to 65
• Lumens (25): 2,787
• Lumens (65): 4,266
• Illuminance (25): 1,290 lux @ 5 m
• Illuminance (65): 252 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Protocol(s): DMX, RDM
• DMX Channels: 1, 2, 2 or 5
• Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 19 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
• Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
• Power and Current: 81 W, 0.40 A @ 208 V, 60 Hz
• Power and Current: 81 W, 0.36 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

PHYSICAL

• Height: 297mm
• Width: 285mm
• Depth: 382mm
• Weight: 5kg
