Chauvet Professional EPIX Drive 2000 IP65 Processor & PSU for EPIX IP and Tour

Chauvet Professional EPIX Drive 2000 IP65 Processor & PSU for EPIX IP and Tour - Chauvet Professional

Name: Chauvet Professional EPIX Drive 2000 IP65 Processor & PSU for EPIX IP and Tour
Brand: Chauvet Professional
SKU: CHAUPRO EPIXDRIVE2000IP
Price: 1040.4 GBP
Availability: InStock

roll over the image to zoom in

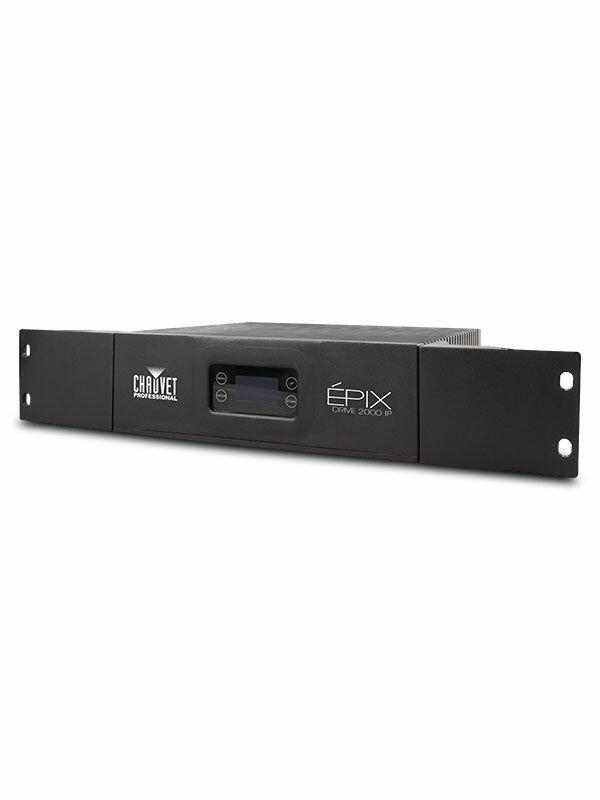

Chauvet Professional EPIX Drive 2000 IP65 Processor & PSU for EPIX IP and Tour
SKU: CHAUPRO EPIXDRIVE2000IP
Chauvet Professional

pix Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the pix IP and Tour system. It supports 20 pix Strip IPs, 36 pix Strip Tours or 12 pix Bar Tours, or any combination of the three, with a maximum capacity of 2000 LEDs. pix Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the pix fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.SPECIFICATIONS

pix Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the pix IP and Tour system. It supports 20 pix Strip IPs, 36 pix Strip Tours or 12 pix Bar Tours, or any combination of the three, with a maximum capacity of 2000 LEDs. pix Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the pix fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.

Construction / Physical

Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
Weight: 12 lb (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum
Rackmount: 2U

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4-pin XLR): 2
Physical Linking (port A): 10 inline Epix Strip IP Tour, 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
Physical Linking (port B): 10 inline Epix Strip IP Tour, 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
Data Connectors: Seetronic Etherkon IP65
Cable Length (power): 5 ft (1.5 m)
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between Epix Drive 2000 and last Epix Tour or IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between Epix Drive 2000 and first Epix Tour or IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between Epix Tour or IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix Drive 2000 and last Epix Tour or IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix Drive 2000 and first Epix Tour or IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between Epix Tour or IP fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
Control Channels (Art-net, sACN): 7, 8, 15, 30, 60, or 300

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
Maximum Load: 10 EPIX Strip Ip or 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)
