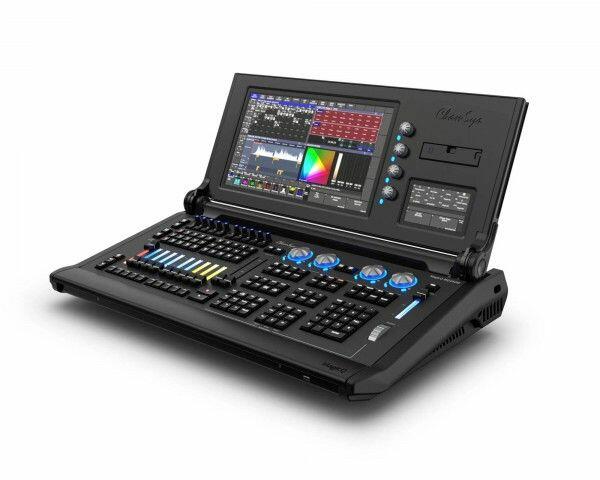

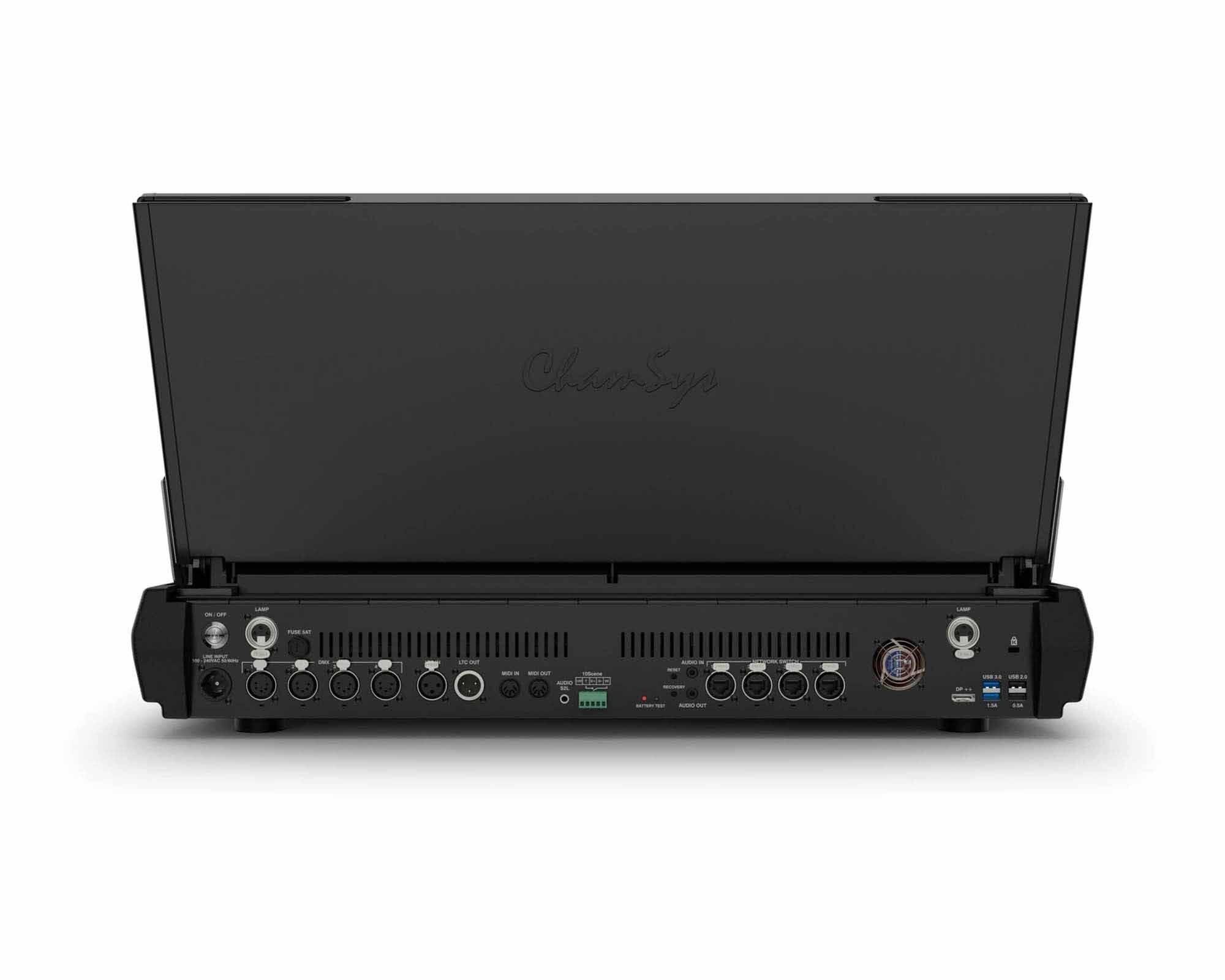

Chamsys MagicQ MQ250M 128-Universe Stadium Lighting Console INC Upgrade

Chamsys MagicQ MQ250M 128-Universe Stadium Lighting Console INC Upgrade - Chamsys

roll over the image to zoom in

Chamsys MagicQ MQ250M 128-Universe Stadium Lighting Console INC Upgrade
SKU: Cham 100-250UP
Chamsys

Console already upgraded to the 128 version
10 fully motorised fader playbacks
10 encoder playbacks
RGB illumination of playbacks
Backlit buttons
Inbuilt 15 Multi HD touch display
Dedicated 5 Attribute/Encoder touch display
Dual 100mm Manual Cross Faders
2 dedicated high power USBs for charging of phones/tablets
Inbuilt Wi-Fi connects to MagicQ Remote control app

Hardware Specifications:

Universes direct from the console: 128
Direct DMX Outputs: 4
Motorised Playbacks: 10
Encoder Playbacks: 10
Total no of Playbacks: 20 (10+10)
Dual Cross Faders: Yes
Attribute Encoders: 8
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 4
Inbuilt 15 HD Multi-Touch Displays: 1
Inbuilt Attribute/Execute display: 1
External Monitor up to 1920x1200 Resolution - Display Port: 1
USB Ports, including 2 High Power USBs: 6
Audio Input (1 channel, 7 band): Yes
Audio Input Sound to Light: Yes
Audio Output: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
10Scene Port: 1
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

Max Number of DMX Channels: 65,536
Max Number of Fixtures Supported: 65,536
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Numbers of Shows: Virtually unlimited (500GB SSD)

Included Accessories:

Dual Colour Desk lights: 2
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
Display port to HDMI Cable: 1

Flight Cased Weights and Dimensions:

Width: 810mm (31.9 inches)
Depth: 530mm (20.9 inches)
Height: 320mm (12.6 inches)
Weight (console in flightcase): 26kg (57.3lbs)

Console Weights and Dimensions:

Width: 680mm (26.7)
Depth: 416mm (16.3)
Height: 159mm (6.25)
Weight: 13kg (28.6lbs)

£17,760.00

£19,200.00
