AV:Link 4K HDMI 2.0 Matrix 4x4 128.850UK - 128.850UK

SKU: 128.850UK
AV:Link

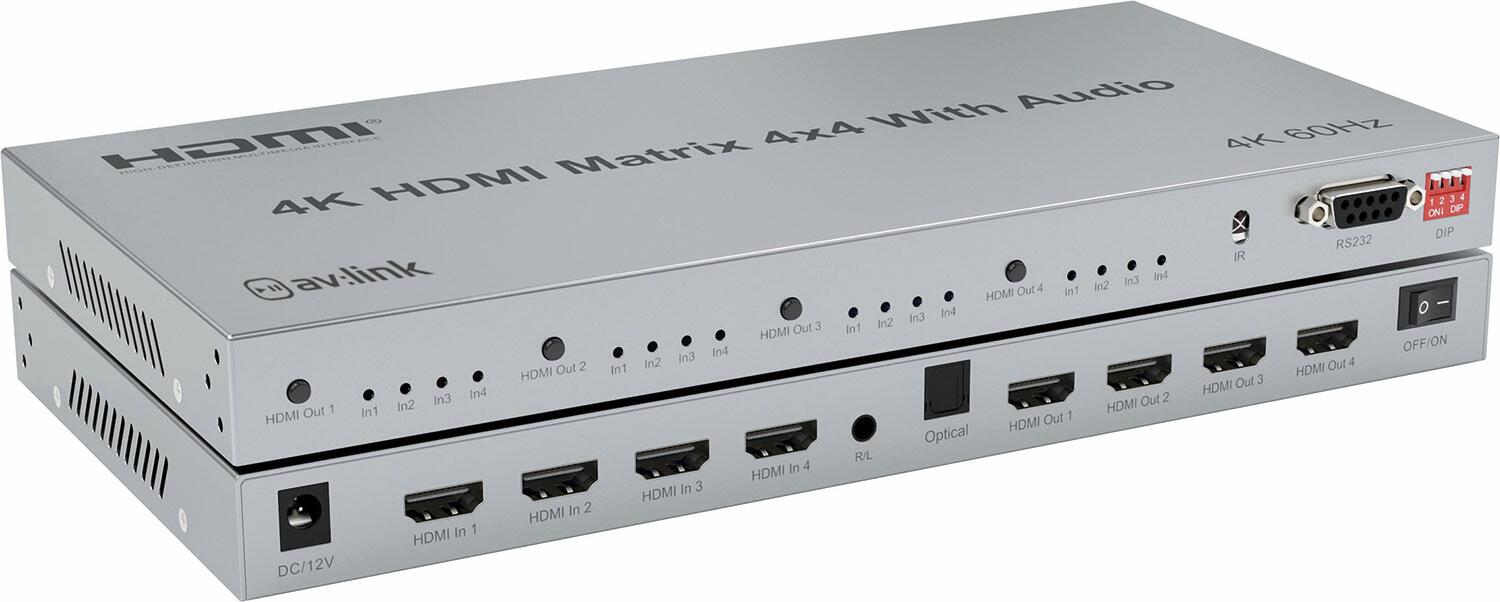

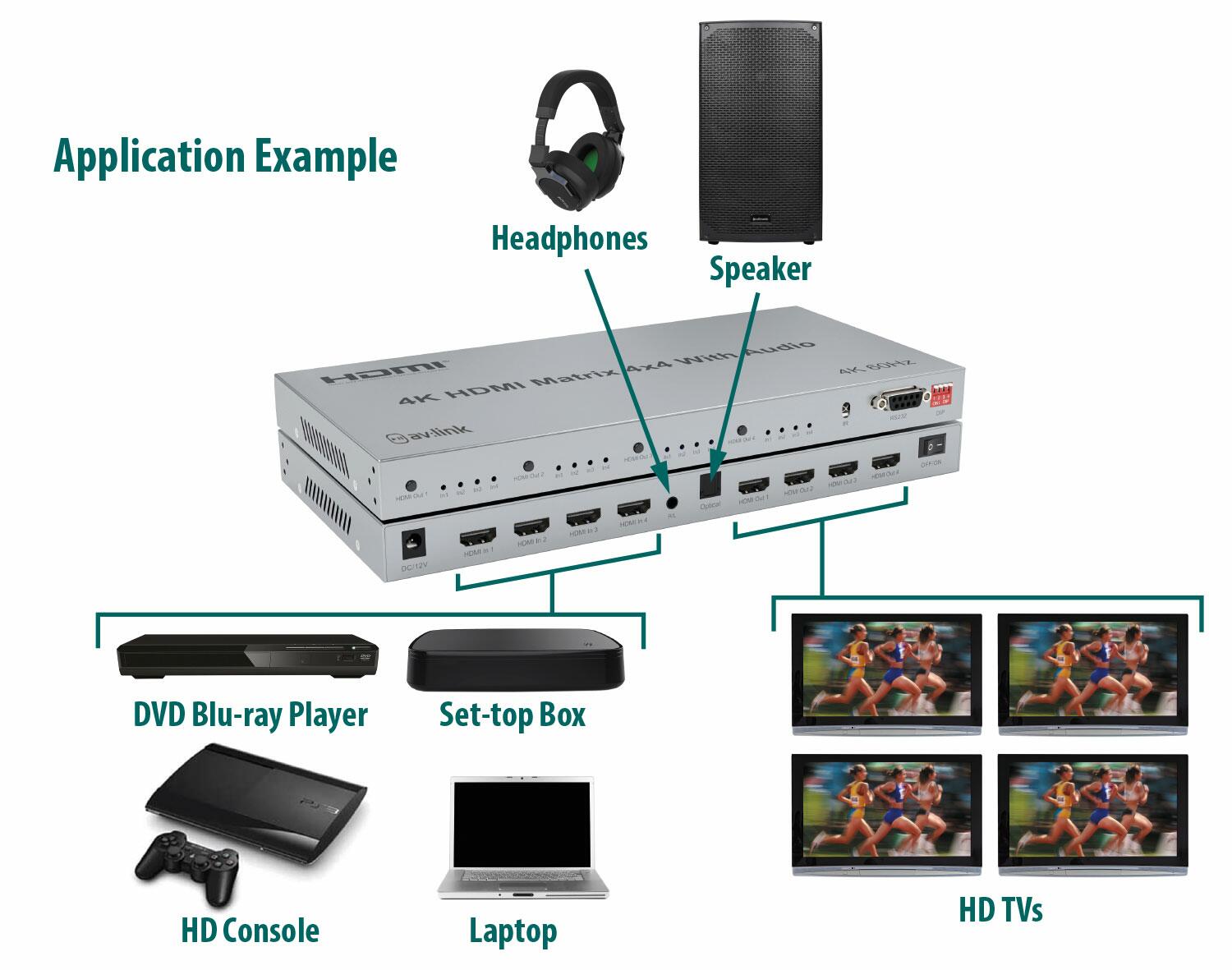

A 4K HDMI matrix to switch between 4 source devices and 4 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal from HDMI output 1 to be simultaneously channelled through a separate sound system and/or headphones. Robust metal chassis incorporates an EDID switch panel for specific video and sound requirements and an RS232 port for serial data communication with a connected PC or laptop. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues and supplied with IR remote to switch between sources for all outputs.

Supports HDMI v2.0 resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes

Simple setup and operation

Gold plated HDMI connectors for optimum signal transfer

Supports DTS-HD, Dolby TrueHD , LPCM7.1, DTS, Dolby-AC3 and DSD audio formats

Digital SPDIF and analogue 3.5mm jack audio outputs

Smart EDID management for precise video and audio settings

Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays

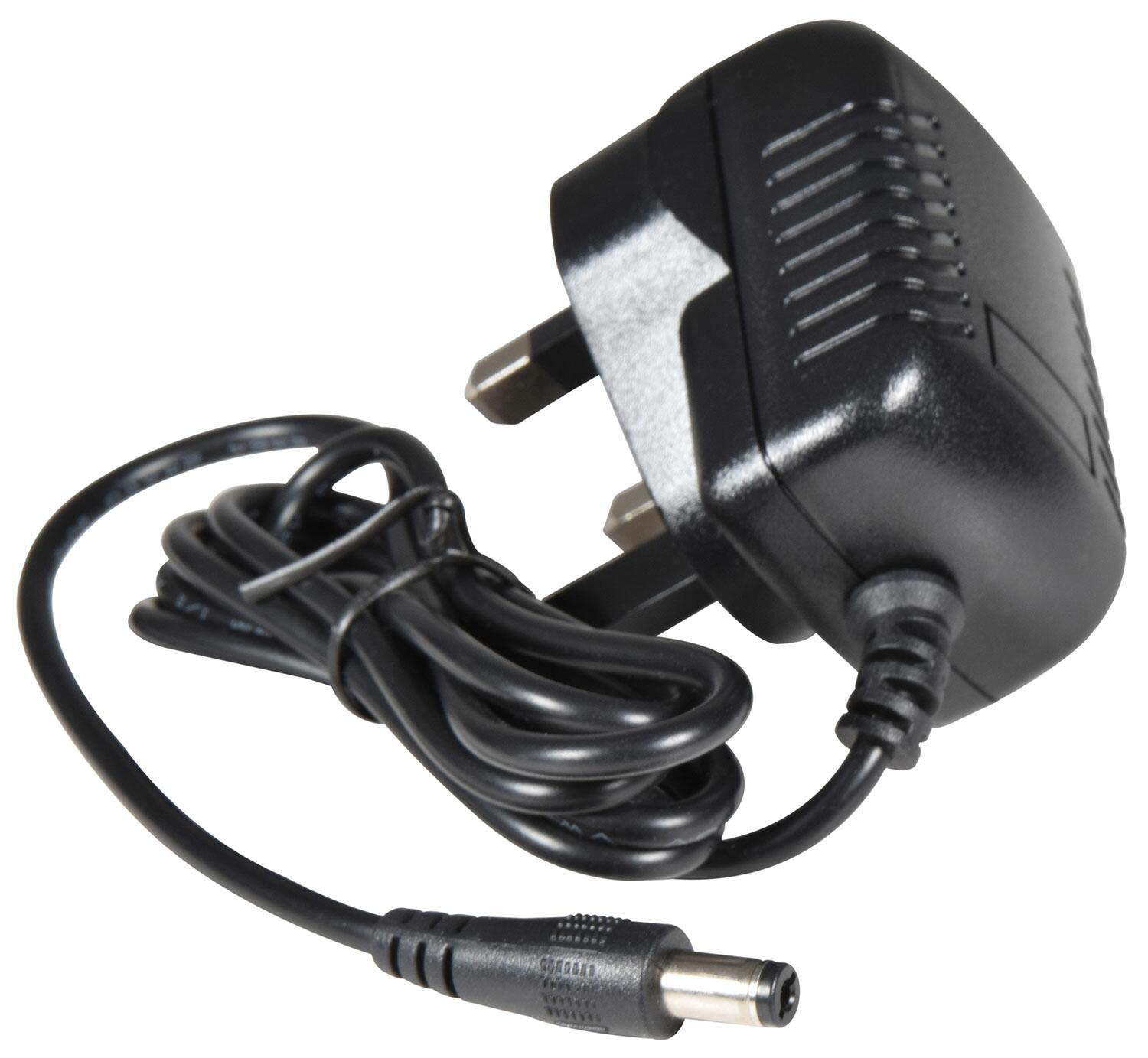

IR remote control and UK power adaptor supplied

HDMI version v2.0b

Max. resolution 3840 x 2160 @ 60Hz

Display colours 8/10/12bit deep colour

HDCP version 2.2

Audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

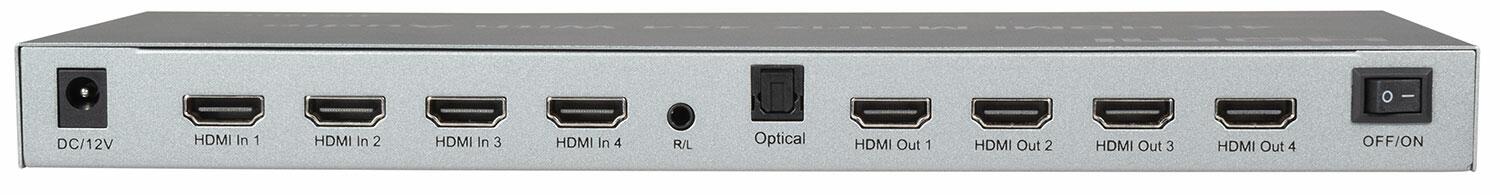

Input connections 4x HDMI

Output connections 4x HDMI, Optical (Toslink), 3.5mm Stereo

Max. baud rate 18Gbps

Transmission distance 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz

Max. working current 800mA

Operating temperature range -15C to +55C

Battery : remote 2x AAA (not supplied)

Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC12V/1A

Dimensions 276x143x26mm

Weight 720g
