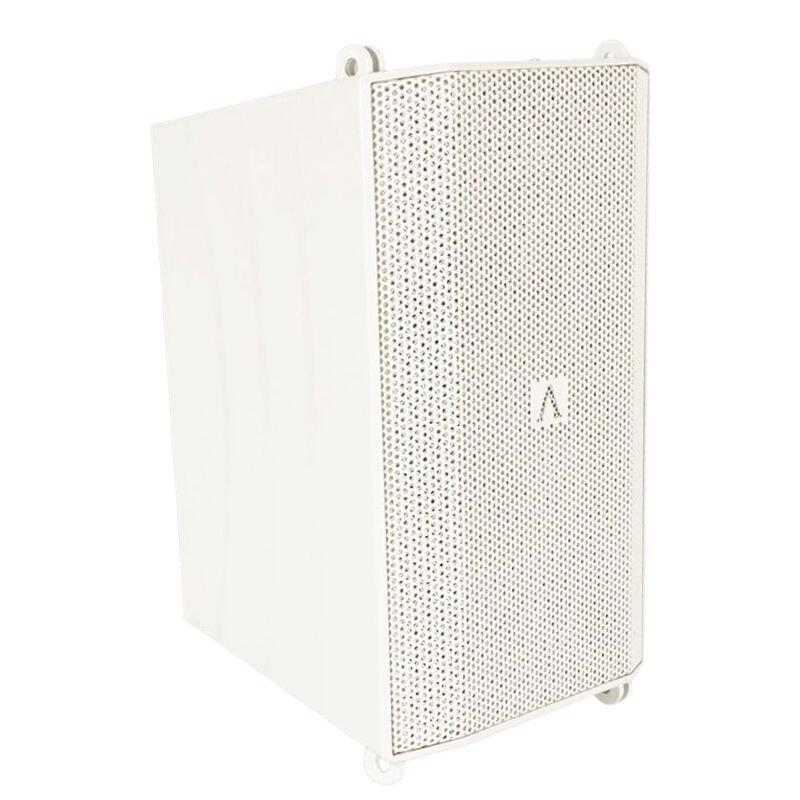

Avante Imperio White

SKU: ADJ1163900025
Avante

240W RMS Class D Power Amplifier with dual 4.75" woofers and 6x 1.75 IDVAT (inverted Dome Vertical Array Technology) HF Drivers. Part of the Imperio Mini Line Array Series with White housing.

Specifications :

Speaker

• 2-way active closed Design loudspeaker

• Driver Information:

 2x 4.75" Neodymium Woofer with 1-inch voice coil

 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)

• Max Output SPL: 117dB (single box measured on Axis @1m)

Coverage

• Nominal Coverage: 90° x 15°

• Frequency Range (-10db): 150Hz – 20KHz

Construction

• Cabinet: White ABS Plastic

• Grill: 1.0mm steel

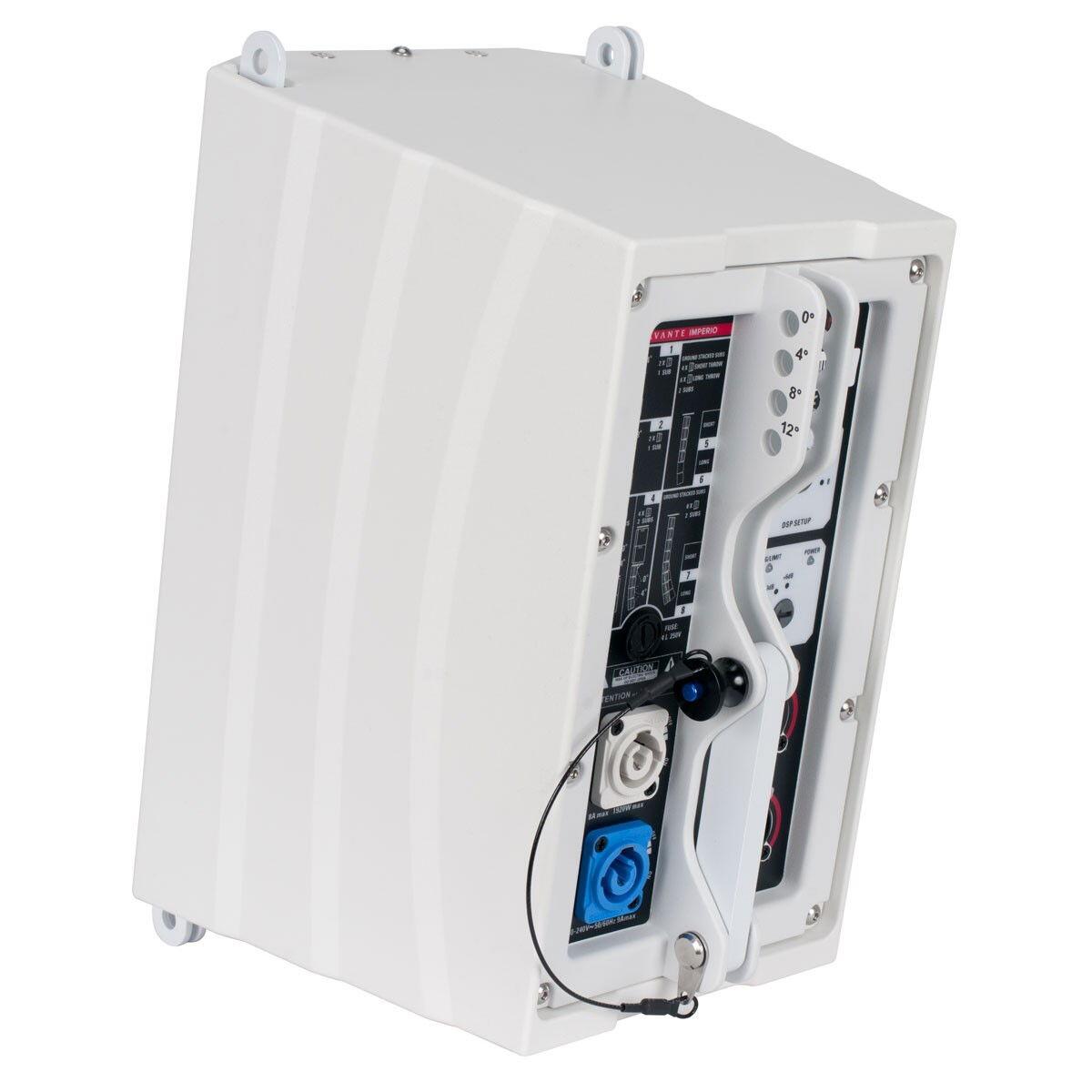

• Splay Angles: 0 4 8 & 12-degrees

• Integrated Rigging: Yes

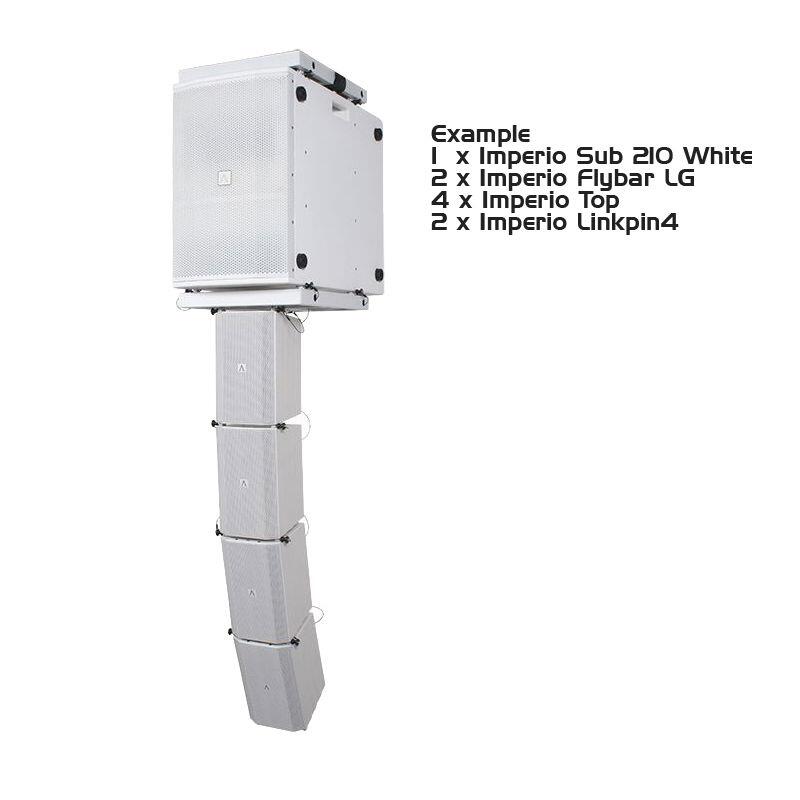

• LinkPins for connecting 2 Imperio or pole mounting included.

• 06m Locking Power and XLR Link cables included

• Volume: Selectable Input Sensitivity Dial

Amplification

• Amplification Power: 600W Peak

• 2x 120W RMS Class D Amplifier Module

• Switching Power Design

• LED Power / Signal / Clip Indicator

• 24-bit DSP Selectable Configurations

• Selectable Input Sensitivity: -3dB 0dB 3dB 6dB

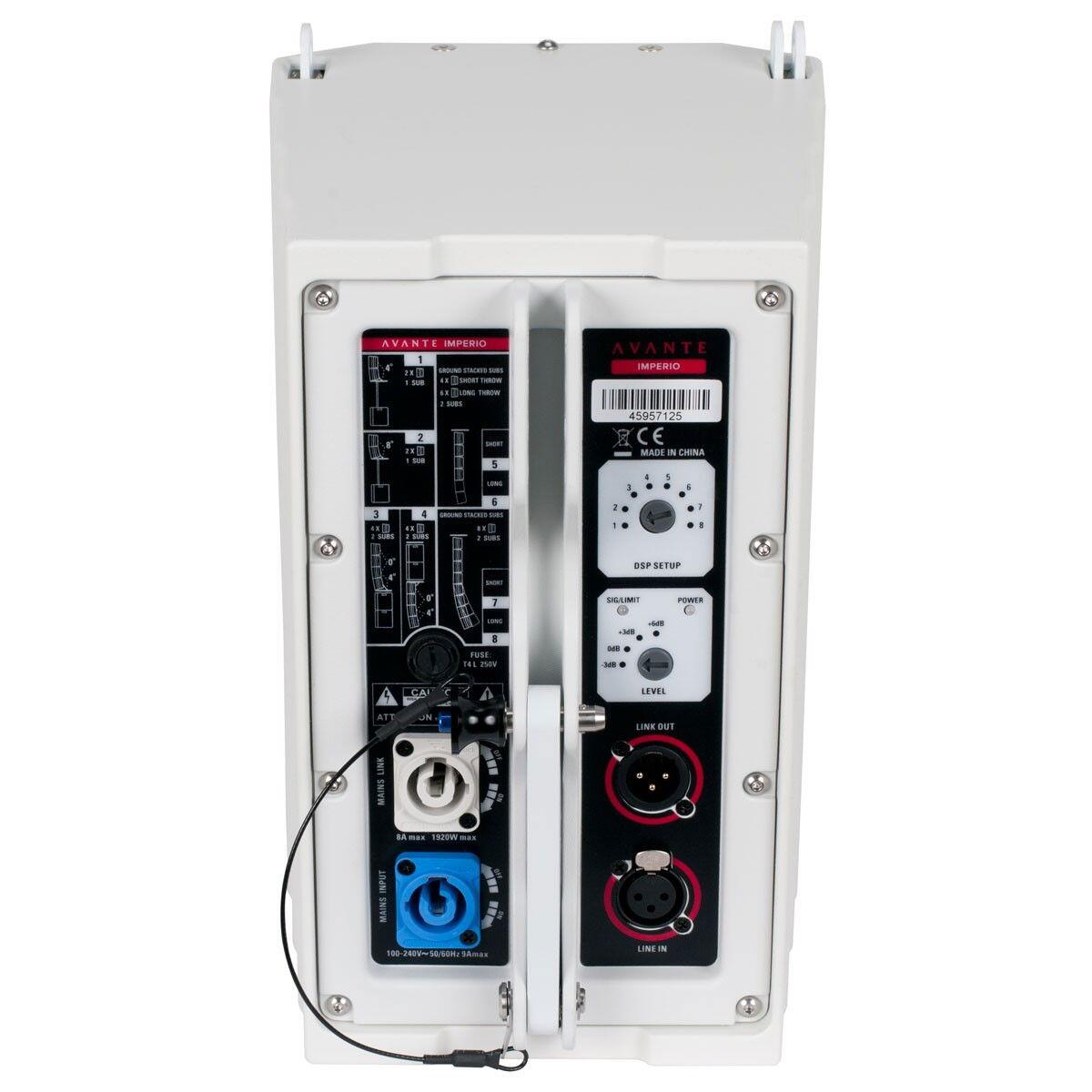

Connections

• Signal Input/Output : Locking 3pin XLR

• Power Input/Output: Locking Power

Electrical

• Power Input: 100-240V ~ 50/60Hz

Dimensions & Weight

• Dimensions: (W x D x H) 184.8x224x324mm

• Weight: 63 kg

Manufacturer Part Number: 1163900025 Dimensions (L x W x H): 23.0 x 18.5 x 32.0cm
