Audio Technica ATW-A410P UHF Powered Wideband antenna

SKU: ATW-A410P

Please allow 3-5 working days for Delivery

Audio Technica

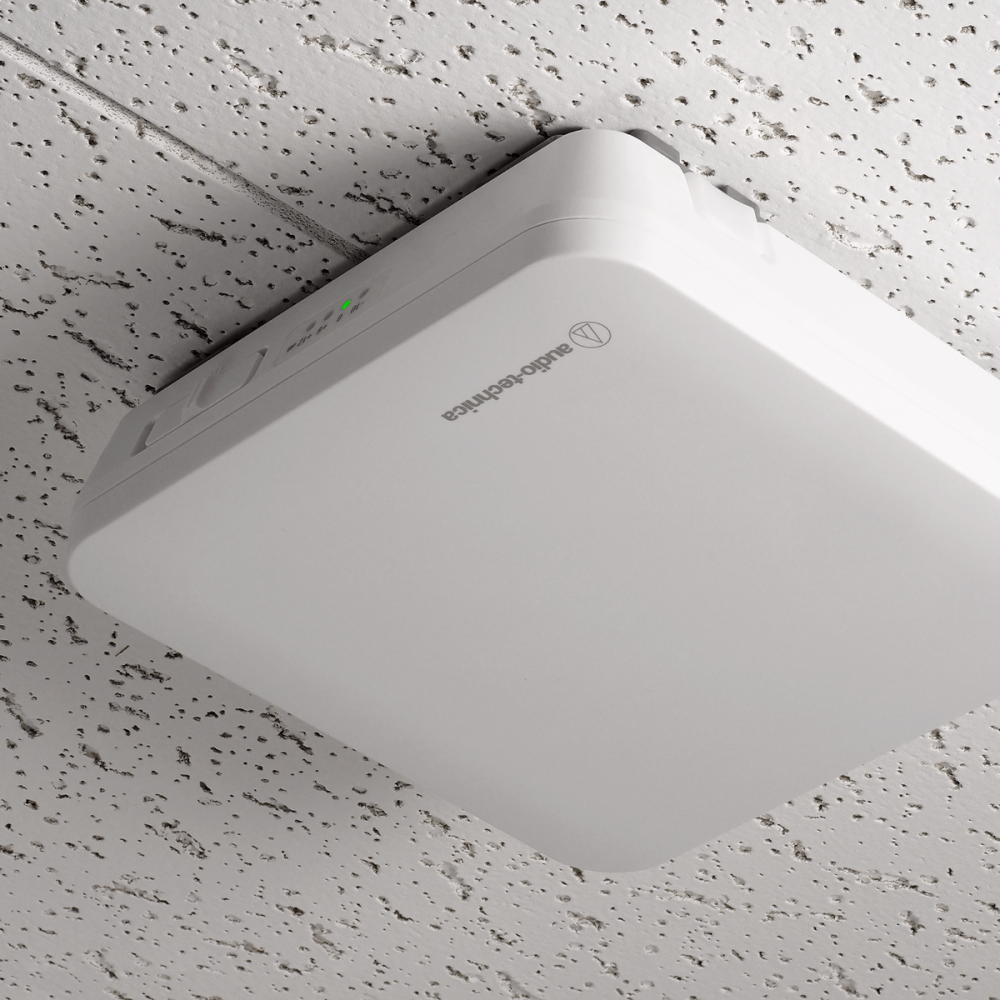

The ATW-A410P is a broadband antenna that can be mounted unobtrusively to almost any room wall or ceiling, thanks to its modern and low-profile design. It features a 4-position switchable amplifier (-10 dB / 0 dB / +6 dB / +12 dB) to compensate for cable loss. The LED indicator allows the user to quickly and easily read the current gain setting

• Enhanced signal pickup for UHF wireless systems (470-990 MHz)
• Four gain level settings (-10 dB / 0 dB / +6 dB / +12 dB)
• LED indicator for gain settings
• Low-profile and modern access point design
• Wall and ceiling mountable

Product Specifications

Antenna & Distribution

• Impedance:  50 ohms typical (within specified bandwidth)
• Gain:  -10 dB / 0 dB / +6 dB / +12 dB
• OIP3:  > 30 dBm typical (within specified bandwidth)
• Termination Type:  BNC-J
• Operating Bandwidth:  470-990 MHz
• Operating Temperature Range:  -10 to 50

Physical

• Dimensions:  175 x 175 x 50 mm (without bracket)
• Weight:  390 g (without bracket)
• Accessories:  Mounting bracket, screws
