Allen & Heath WZ414:4:2 Mix Wizard 4 14:4:2 All-Purpose Rack Mount Mixer

SKU: alh W41442/X
Allen & Heath

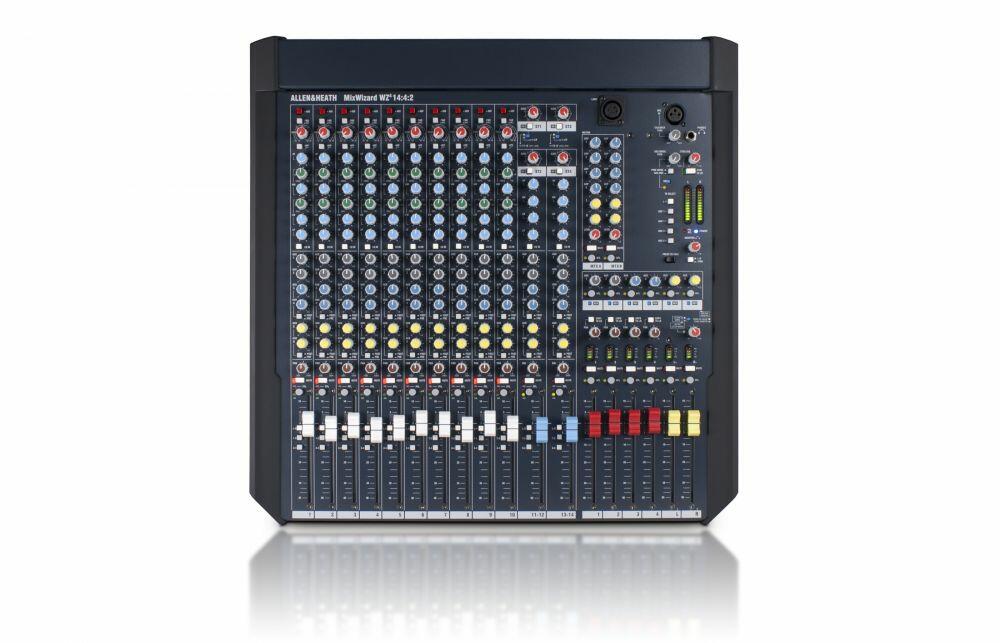

Allen & Heath MixWizard 14:4:2 Dual Function 4 Bus Mixer. 10 Mic/Line inputs, 2 Dual Stereo inputs

Designed as a uniquely versatile live sound mixer, WZ4 14:4:2 is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once.

WZ4 14:4:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

This 4th generation MixWizard console now has the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If youre looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

• 19 Rack mountable

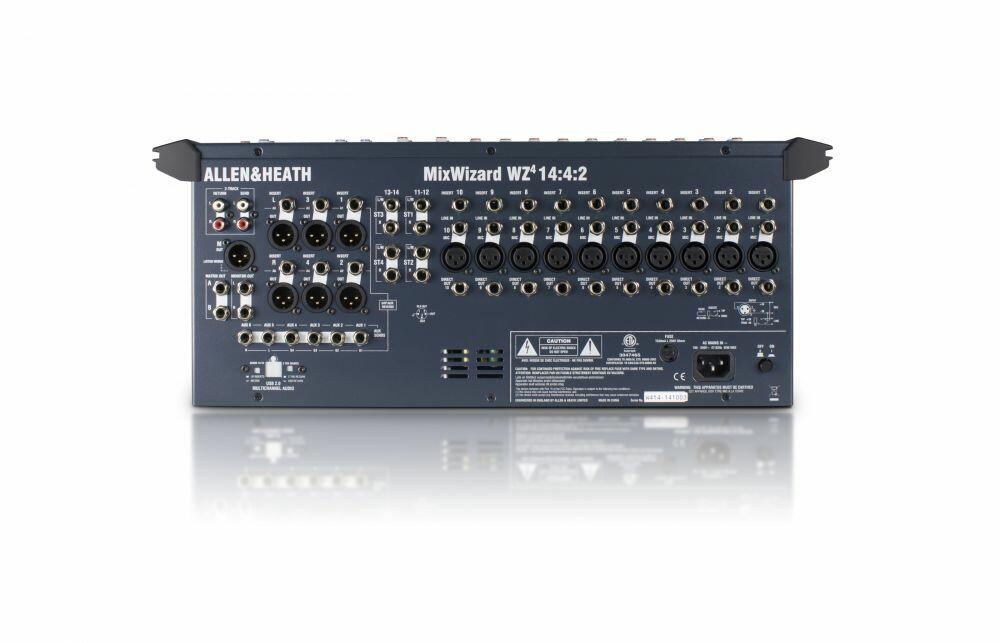

• 10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm faders
• Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
• 6 Aux sends switchable pre/post fade
• 4 Audio groups
• 2 Dual Stereo inputs with separate gain and ON switches allowing inputs to be selected independently or mixed together
• 4 band EQ with 2 swept mids
• 6?2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
• Oscillator and Pink Noise generator for line-up and speaker testing
• Tri-colour, 12 segment bargraph metering
• +48V Phantom Power
• Signal and Peak LEDs
• Talkback Mic XLR with trim
• Lamp socket
• USB multitrack recording option

• Performance
  • Maximum output level XLR +26dBu into 600 ohms max load;?Jack +21dBu into 2k ohm max load
  • Internal headroom Channels +21dB;?Mix +23dB
  • Meters 3 colour LED, quasi peak response
  • Sensitivity 0VU = +4dBu at XLR output
  • Master meters 12 segment -30 to +16dB
  • Channel meters 2 segment -12, +16dB (5dB before clip)
  • Frequency response 20Hz to 50kHz +/-0.5dB
  • THD+n at +10dBu 1kHz Channel to mix out < 0.004%
  • Crosstalk at 1kHz Fader shutoff >90dB;?Mute shutoff >90dB;?Inter channel >90dB
  • Noise, rms 22Hz to 22kHz Mic EIN -127dB; Residual output noise < -96dBu (-100dB S/N);?LR unity fader mix noise < -84dBu (-88dB S/N);?Group unity fader noise < -90dBu (-94dB S/N)
  • Channel HPF 12dB/octave below 80Hz
  • Mono EQ HF Shelving, +/-15dB, 12kHz;?HM Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8;?LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8;?LF Shelving, +/-15dB, 80Hz
  • Stereo EQ HF Shelving, +/-15dB, 12kHz;?HM Peak/dip, +/-15dB, 2.5kHz, Q=1.8;?LM Peak/dip, +/-15dB, 250Hz, Q=1.8;?LF Shelving, +/-15dB, 80Hz
  • Power supply 100-240V, 50/60Hz auto sensing, IEC input; Power consumption 45W max; Mains fuse T630mA L 20mm?
• Connections
  • Mono channel XLR balanced pin 2 hot Sensitivity -60 to +10dBu;?TRS balanced, tip hot Sensitivity -40 to +10dBu;?Pad out (MIC) 2k ohm;?Pad in (MIC or LINE) >10k ohm, -20dB;?Max input level +30dBu;?XLR phantom power +48V, on/off
  • Stereo channel ST1,3 TRS unbalanced >10k ohm, -16 to +20dBu;?ST2,4 TRS balanced >10k ohm, -16 to +20dBu
  • Talkback mic XLR balanced pin 2 hot Sensitivity -50 to -10dBu;?Phantom power Internal jumper +48V
  • 2-track return RCA phono, unbalanced >4k ohm, -8 to +4dBu
  • 2-track send RCA phono, unbalanced < 1k ohm, -2dBu
  • Inserts Channel TRS, tip send, ring return, 0dBu;?Output TRS, tip send, ring return, -2dBu
  • L, R, M outputs XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max
  • Group (aux) out XLR balanced pin 2 hot <75 ohm, +4dBu, +26dBu max .
  • Aux 1-6 output TRS impedance balanced <75 ohm, -2dBu, +21dBu max;?Electronic balance option <75 ohm, +4dBu, +26dBu max
  • Direct out TRS impedance balanced <75 ohm, 0dBu, +21dBu max
  • Matrix out TRS impedance balanced <75 ohm, -2dBu, +21dBu max;?Electronic balance option <75 ohm, +4dBu, +26dBu max
  • Headphones TRS, tip L, ring R, 30 to 600 ohm headphones recommended
  • Monitor output TRS impedance balanced <75 ohm, -2dBu, +21dBu max
  • Lamp 4-pin XLR max 12V 5W lamp

Physical & Dimensions

• Height: 194mm
• Width: 507mm
• Depth: 530mm
• Weight: 13kg
