ADJ Ultra LB18

SKU: ADJ1226200051
ADJ

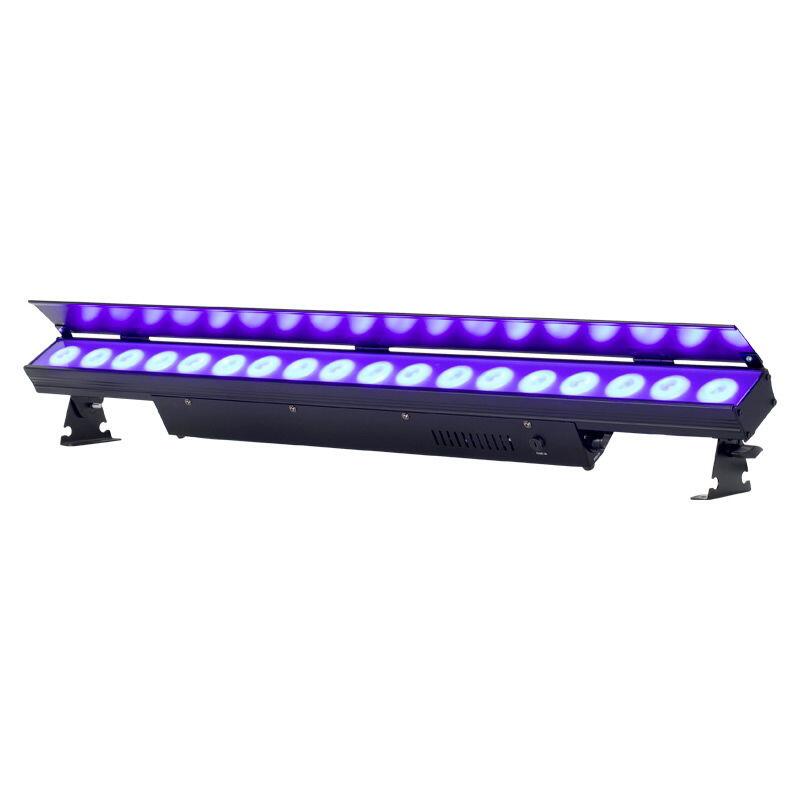

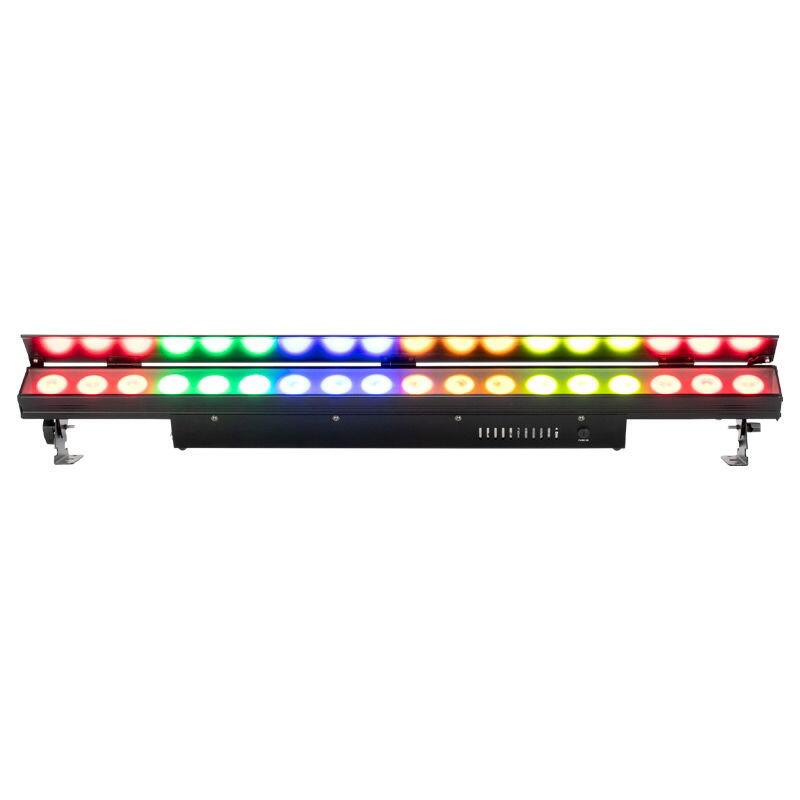

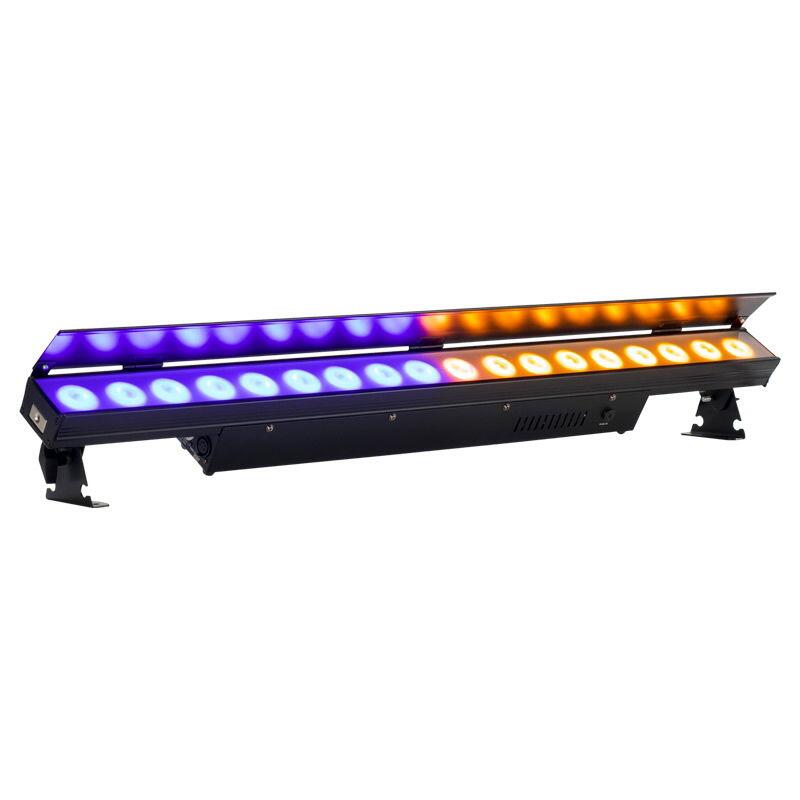

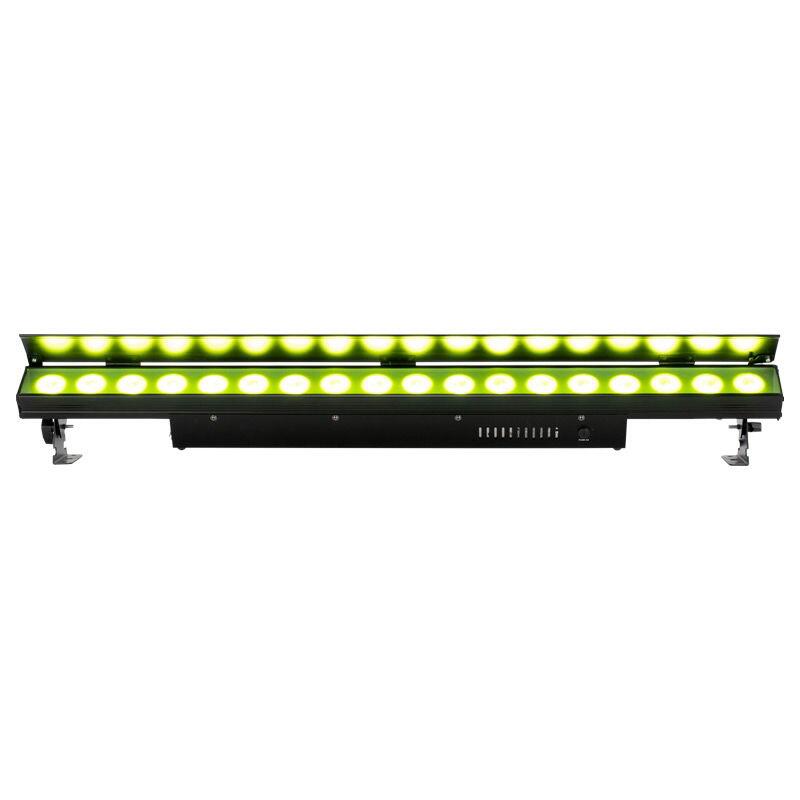

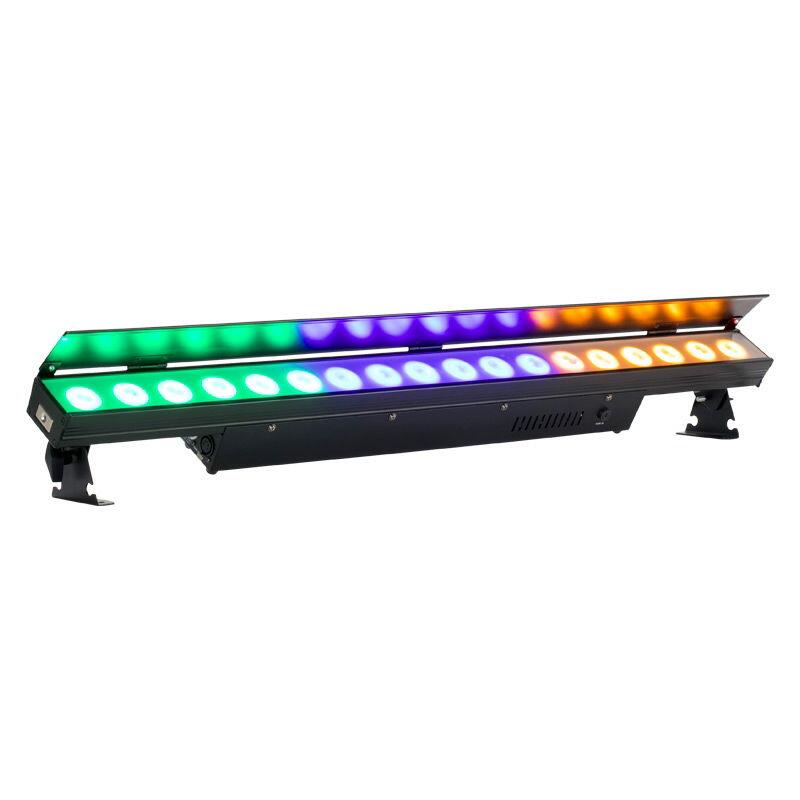

Delivering vibrant and punchy colour mixing output ADJ’s Ultra LB18 is a professional linear LED wash lighting fixture. Featuring 18 x 10-Watt 5-in-1 colour mixing long life LEDs (red green blue amber & lime) it offers a large gamut of colour possibilities including white light with a colour temperature variable between 2300K and 9900K. The inclusion of a lime LED chip not only increases the palette of colours available from the fixture but also boasts the CRI of its white light output to in excess of 90.
With a beam angle of 17 x 40-degrees the fixture is ideal for illuminating stages dancefloors décor and sections of wall. It is designed for permanent installation in bars clubs lounges theatres concert venues and churches as well as temporary event production at indoor locations. The fixture is supplied with brackets that can be used to set it directly on the ground or attach to a clamp for truss mounting. Its ends are also magnetic which allows adjacent fixtures to be quickly and easily aligned to create longer continuous bars of LEDs to uniformly wash larger areas. A compact and lightweight fixture it is supplied with a glare shield that blocks the LEDs from view and also protects them during transport.

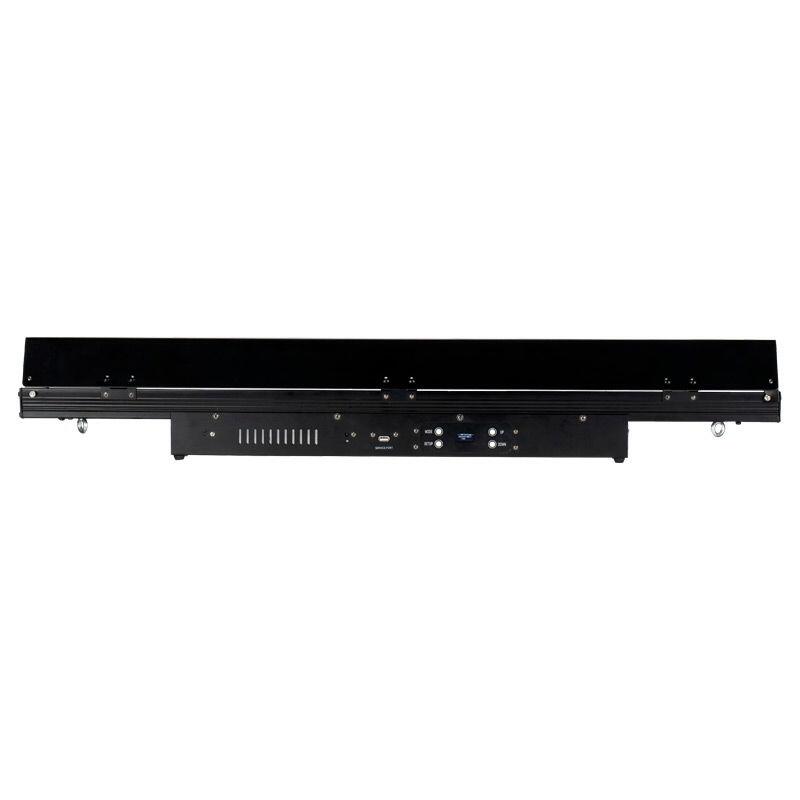

The Ultra LB18 offers six operational modes: Auto Run Program Mode Sound Trigger (utilizing an in-built microphone) RGBAL Manual Static Colour and DMX. It offers a variety of DMX modes using between 5 and 71 control channels and is also compatible with ADJ’s UC IR wireless remote. A digital display with 4-button menu interface on the rear panel allows easy mode selection and DMX addressing while a USB port allows quick and easy future firmware updates.


Specifications

Light Source:

18 x 10W Ultra bright (Red Green Blue Amber & Lime) LEDs Long Life LEDs (Rated at approximately 50000 hrs.) 17x40 degree beam angle >90 CRI

Features:

Linear Colour Temperature Control (2300K to 9900K) Smooth RGBAL colour mixing Horizontal Magnetic Alignment feature (Built-In) Compatible with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet (10 meters) Glare shield that blocks the LEDs from glare/view and protects LEDs during transport USB Service Port

Control:

Linear Colour Temperature Control (2300K to 9900K) Digital Display with 4-button menu 11 DMX Channel Modes: 5 8 10 13 16 30 33 38 41 60 & 71 Channels 6 zones of 3 LED's controllable via DMX in 30 33 38 41 60 & 71 channel modes 6 operational modes: Auto Run Program Mode Sound Trigger RGBAL Manual Static Colour and DMX-512 Mode Flicker Free operation (No flickering on camera) Refresh Rate: 2.88KHz 64 built-in Colour Macros including 15 white colour temperature presets 5 selectable Dim Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Square Linear Inv. Square & S. Curve) Built-In Microphone for sound trigger mode LED pulse and strobe effect Electronic Dimming: 0-100

Connections:

Linkable: DMX via 5-pin XLR cable Locking power In/Out to daisy chain power

Electrical:

Multi-voltage operation: AC 100V-240V 50/60Hz Power Draw: 130W Daisy-chain power link (Up to 12 Ultra Bar 18's can be linked @120V and up to 25 Ultra Bar 18's can be linked @240V)

Dimensions / Weight:

Dimensions (LxWxH): 3.39" x 39.3" x 7.42" (86x996x188.4mm) Weight: 12.13 lbs./ 5.5kg.

What's Included:

Locking Power Cord Removable Glare Shied Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting

Manufacturer Part Number: 1226200051 Dimensions (L x W x H): 8.0 x 100.0 x 13.0cm
