ADJ Focus Spot 4Z

SKU: ADJ1237000204
ADJ

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS 8 vibrant colours plus white and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt multiple DMX control modes and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight compact foot print (18-inch high and one 23 pounds).

Specifications

Source

• Source: Cool White LED Engine 24.000K

• 7000 Lumen

• CRI: 76

• Individual LED wattage : 200W

• Average lifetime: approximately 50000 hrs

Optics

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• Motorized Focus

• Rotating 5-facet Linear & rotating 6-facet Circular Prism

Control

• 2 operational modes : Program Mode or DMX control

• 3 DMX Channel Modes: 16/18/22 Channels

• RDM compatible (Remote Device management)

• Internal Programs with built-In DMX Recorder

• 16bit dimming 0-100%

• 6 Dimming Modes: Standard Stage TV Architectural Theatre Stage 2

• Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8

• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation

• Various strobe effects

• 6-button Colour display

• Battery inside allowing to access the fixture Menu without power connection

• 16bit Pan: 540 & 630 degrees

• 16 bit Tilt: 270 degrees

• 3 Fan settings : Auto High and Low Noise

Colours

• 1 colour wheel with 8 dichroic colours + white

Gobos

• 1 gobo wheel with 6 aluminium GOBOs + open

• All gobos removable rotatable and indexable

• Gobo Shake Effect

• Gobo size: 225mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Construction

• Plastic housing

• 2 cooling fans

• Omega bracket with quick locks

Electrical

• Multivoltage : 100-240V 50/60Hz

• Power Draw : 256W

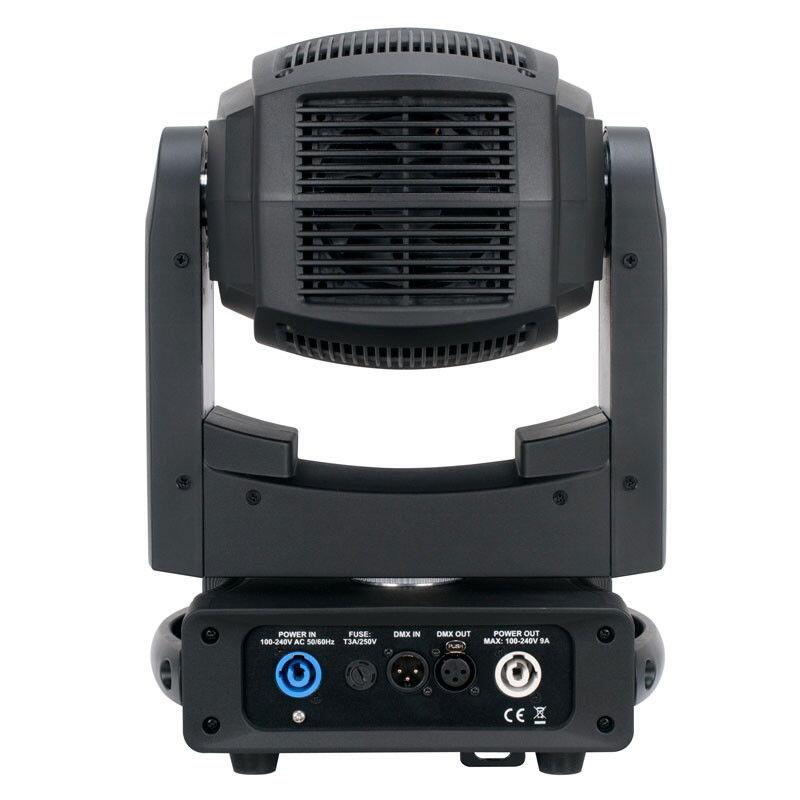

Connections

• Locking 3-pin DMX In/Out

• Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)

• USB firmware update port

Dimensions & Weight:

• Dimensions: 457 x 279 x 182mm

• Weight: 10 kg.

Manufacturer Part Number: 1237000204 Dimensions (L x W x H): 17.5 x 28.0 x 46.5cm
