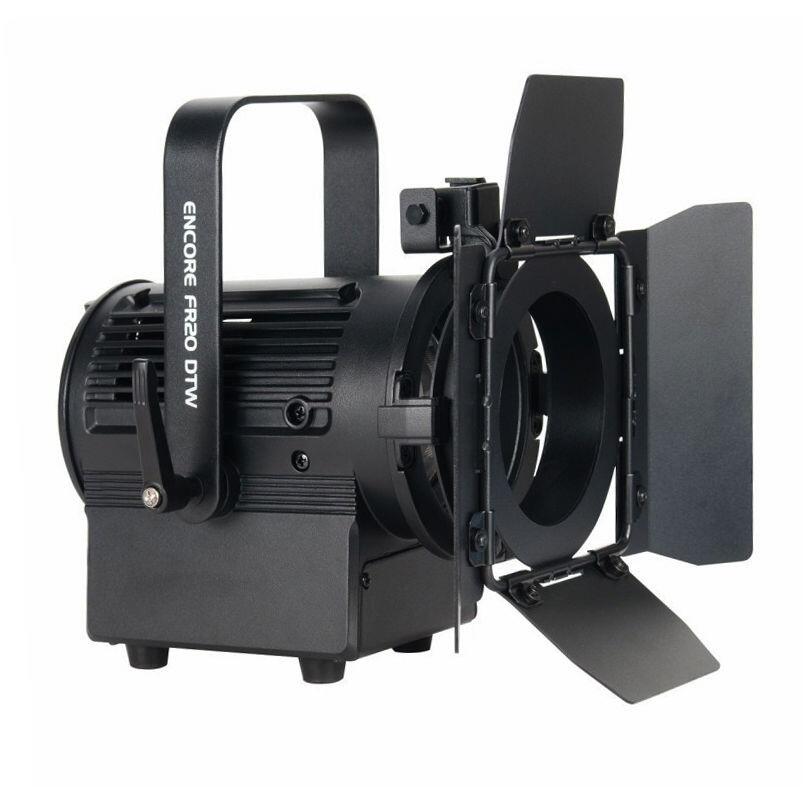

ADJ Encore FR20 DTW

SKU: ADJ1237000189
ADJ

Part of the Encore stage lighting series the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or standard wall dimmers.

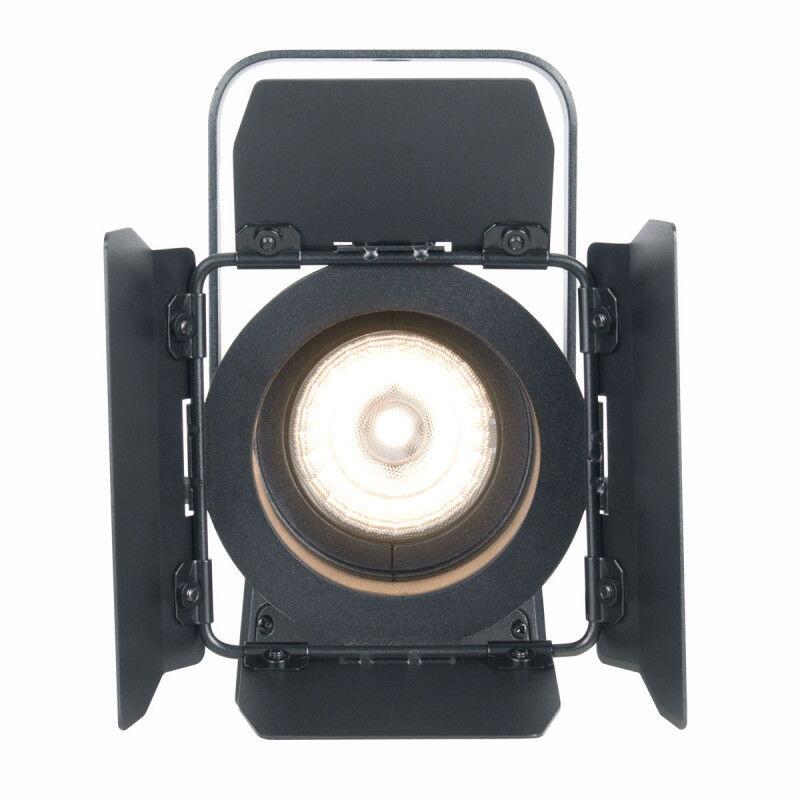

The Encore FR20 DTW comes equipped with a hanging bracket barn doors to manually shape the beam of light and a additional lens filter to change the beam angle from 19-degrees to 45-degrees.

Specifications:

Source

• Light Source: 1 WW COB-LED

• Individual LED wattage : 17W

• Average LED lifetime : approximately 50000 hrs.

• Colour Temperature: 3000K

• CRI: 92

Optics

• Beam Angle: 19 degrees

• Additional 45-degrees Lens-Kit included

Control

• 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer

• Electronic Dimming: 0 - 100% via potentiometer

Colours

• Warm White 3000K

Construction

• Robust extruded aluminium housing

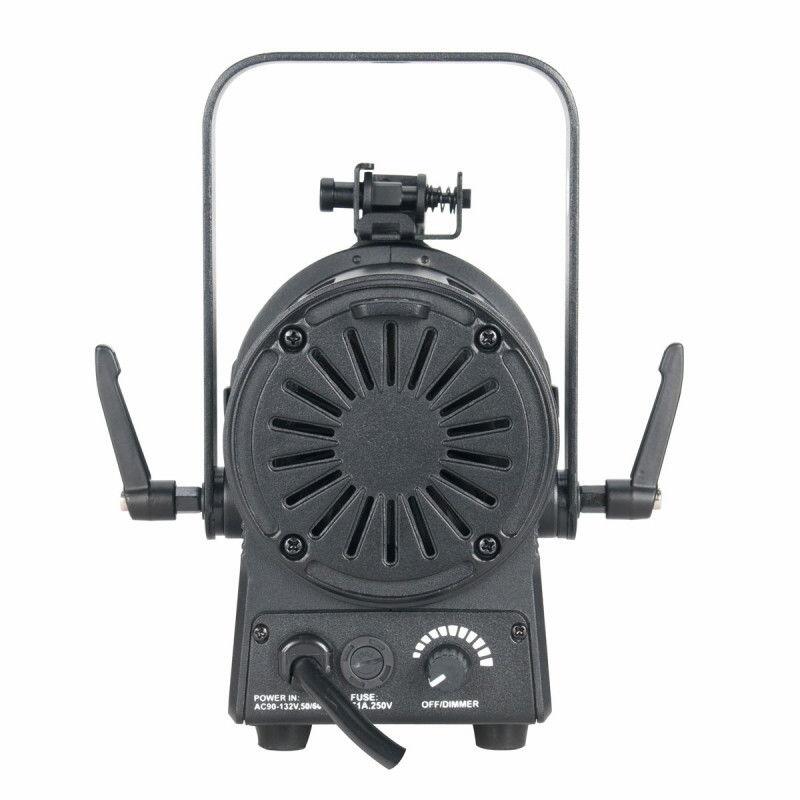

• Manual Dimming knob on rear

• Barndoors & Gel Filter Frame included

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 17W

Connections

• Fixed Power Cable

Dimensions & Weight

• Dimensions (LxWxH):

Without Barndoors: 185 x 160.89 x 209.85mm

With Barndoors: 269.21 x 160.89 x 209.85mm

• Weight:

Without Barndoors: 195 kg.

With Barndoors: 225 kg
