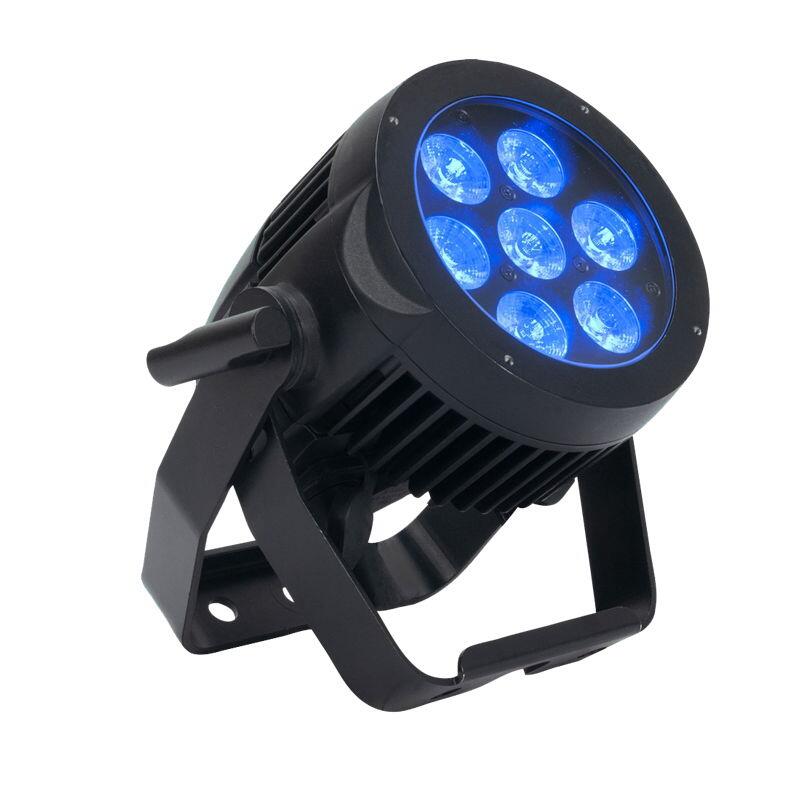

ADJ 7P HEX IP

SKU: ADJ1226100360
ADJ

The ADJ 7P Hex IP is a versatile IP65 outdoor rated Par with 7 x 12-Watt (6-IN-1 HEX) LEDs. With a 25-degree beam angle users may produce wide washes with smooth colour mixing from 63 built-in colour macros utilizing red green blue amber white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues but with IP 65 rating it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain snow and dust.

7P HEX IP professional features include: 4 DMX modes 5 operational modes 4 dim modes flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power and IP rated 3-pin DMX rubber covers and connectors.

Specifications:

Source

• Light Source: 7 RGBAW + UV LEDs (Red Green Blue Amber White & UV LED)

• Individual LED wattage : 12W

• Average LED lifetime :approximately 50000 hrs.

Optics

• Beam Angle: 25 degrees

Control

• 5 Operational modes: Static Colour Mode RGBAW & UV Dimmer Mode Program Mode Colour Macro Mode and DMX Control

• 4 DMX Modes: 6 7 8 & 13-channel

• RDM compatible (Remote Device Management)

• Electronic Dimming: 0 - 100%

• 63 built-in Colour Macros

• 4 selectable Dim Curves (Linear Square Inverse Square S-Curve)

• LED Refresh Rate control : Manual LED refresh rate setting : 900Hz-25khz

• LED pulse and strobe effect

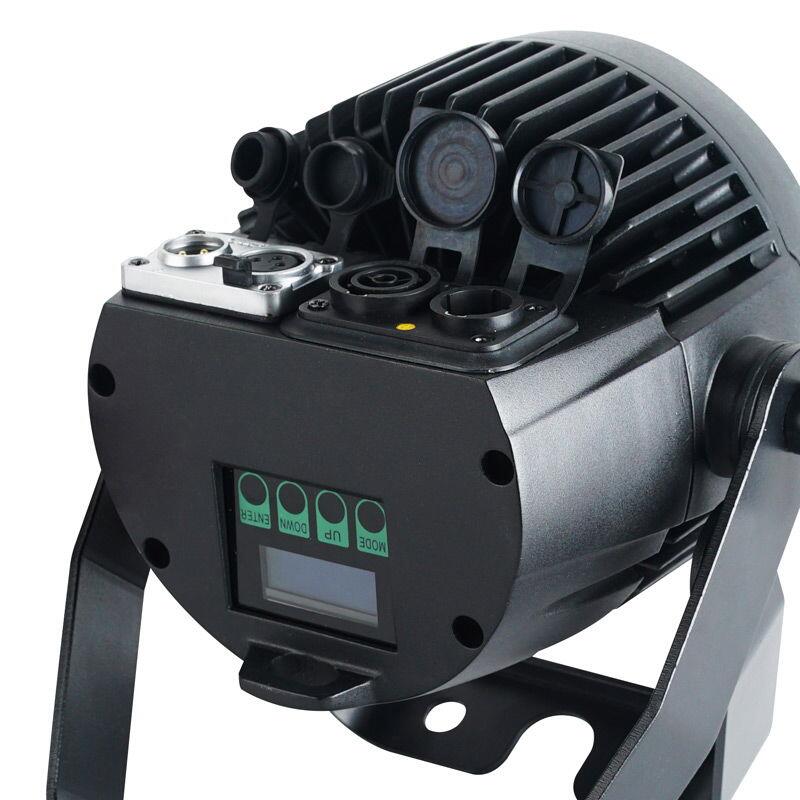

• 4-button DMX digital display on rear panel

Colours

• RGBAW+UV Colour Mixing

Construction

• Metal Housing

• IP Rating : IP65

• Convection cooling

• Scissor Yoke

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 631W

• Daisy chain: 20 units (120V); 37 units (220V)

• Operating Temperature: from -15°C to +45°C

Connections

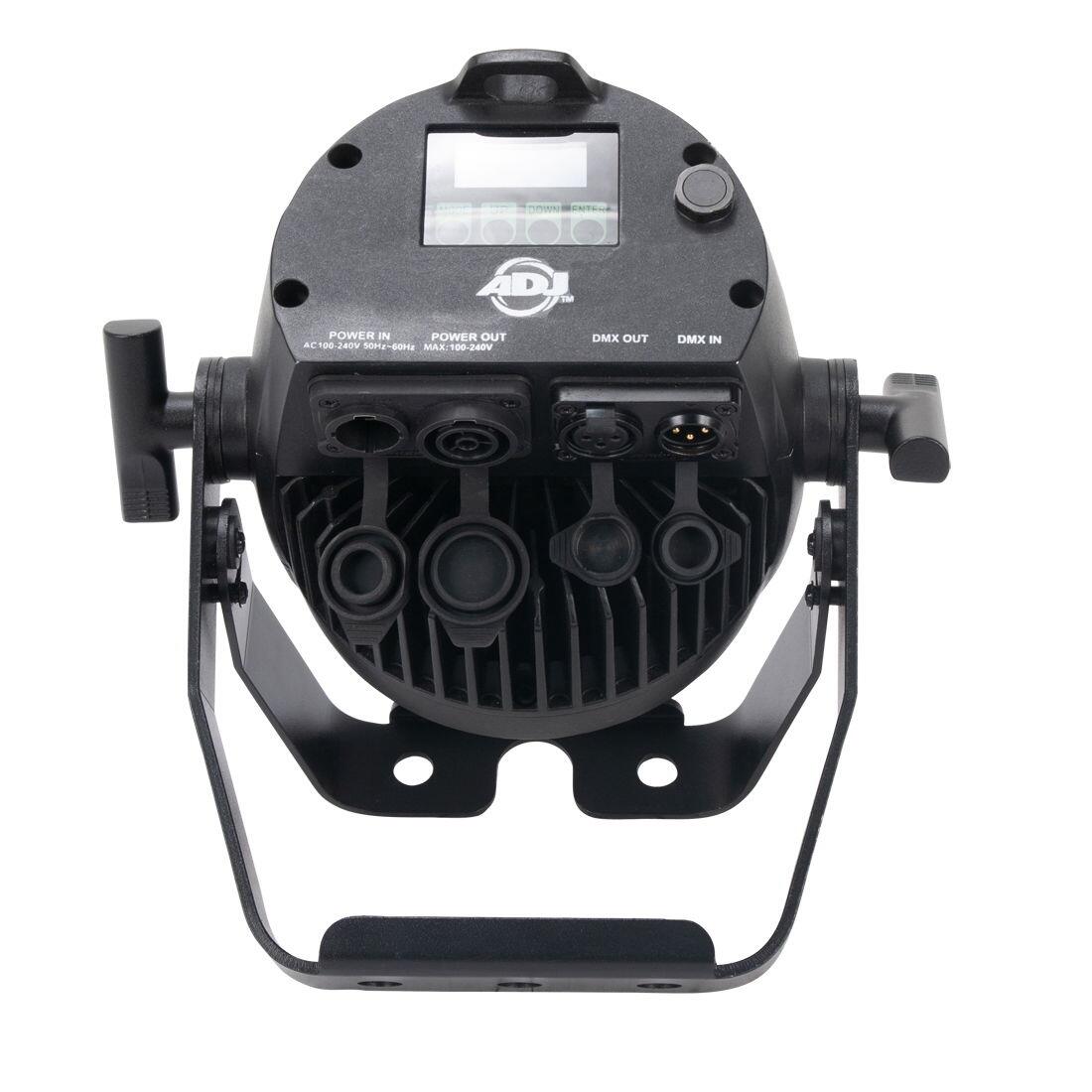

• 3-pin Locking IP65 DMX connectors

• IP65 Locking Power In/Out connections

Dimensions & Weight

• Dimensions (LxWxH):2325 x 256 x 1617mm

• Weight: 34 kg.

Manufacturer Part Number: 1226100360 Dimensions (L x W x H): 15.5 x 26.0 x 23.5cm Weight: 4.80Kg
