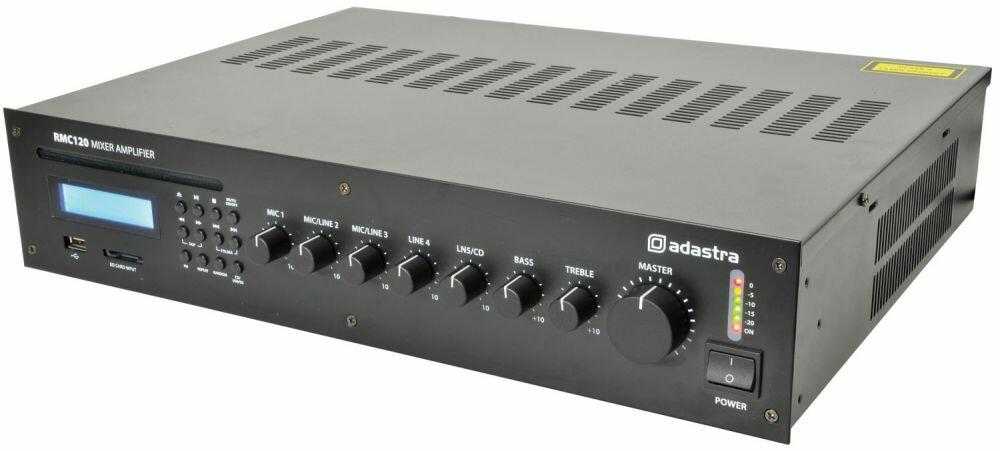

Adastra RMC120 RMC120 mixer-amp 120W with CD/USB/SD/FM - 953.141UK

SKU: 953.141UK

Product Discontinued - Please contact us for alternatives

Adastra

100V line mixer-amplifier with integral sound source. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A built-in CD player provides audio playback alongside a USB/SD media player with an integral FM radio tuner. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.

5 input channels

USB/SD/FM audio player

Slot load player for standard audio CDs

External D.C. power option

8 Ohms or 100V line speaker output

2U 19 rack mountable

Supplied with rack-mount ears

Dimensions433 x 320 x 89mm

Weight9kg

Power supply110/240Vac, 50/60Hz (IEC)

DC power24Vdc (screw terminals)

Output : signal2 x RCA

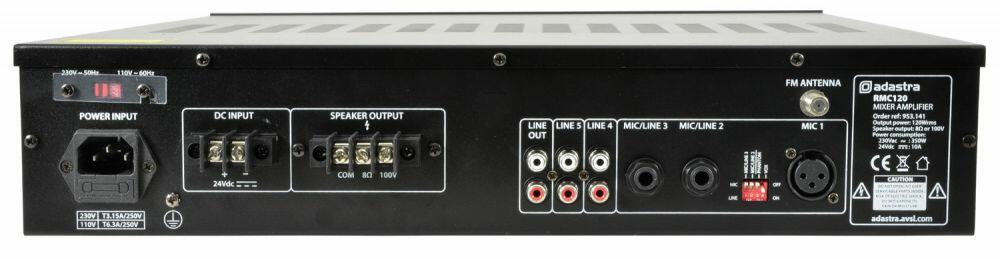

InputsMic XLR, 2 x mic/line jack, 2 x RCA line

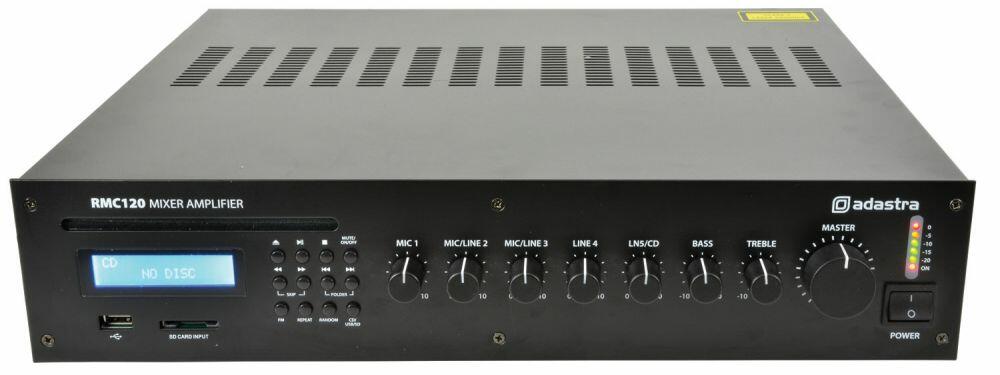

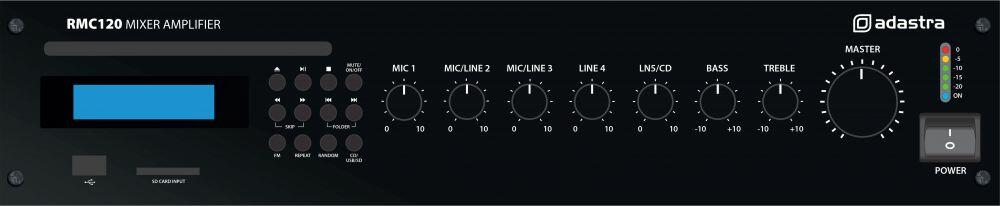

ControlsMic1, mic/line2+3, line4+5 (USB), bass, treble, master volume

Equalizer : bass100Hz 10dB

Equalizer : treble10kHz 10dB

Audio sourceIntegral CD player & USB/SD/FM module

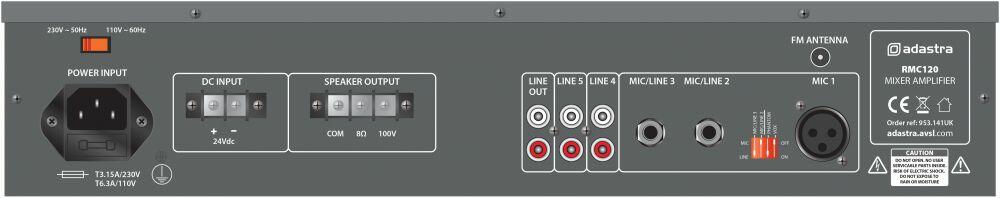

Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)

Phantom power+20V (MIC 1 input)

THD<1.0%

Power : output120Wrms

Outputs : speaker100V / 8 Ohms / COM terminals

Input sensitivity : mic 1 (balanced)-53dBV

Input impedance : mic 15k Ohms

Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)

Input impedance : inputs 2-51k Ohms
