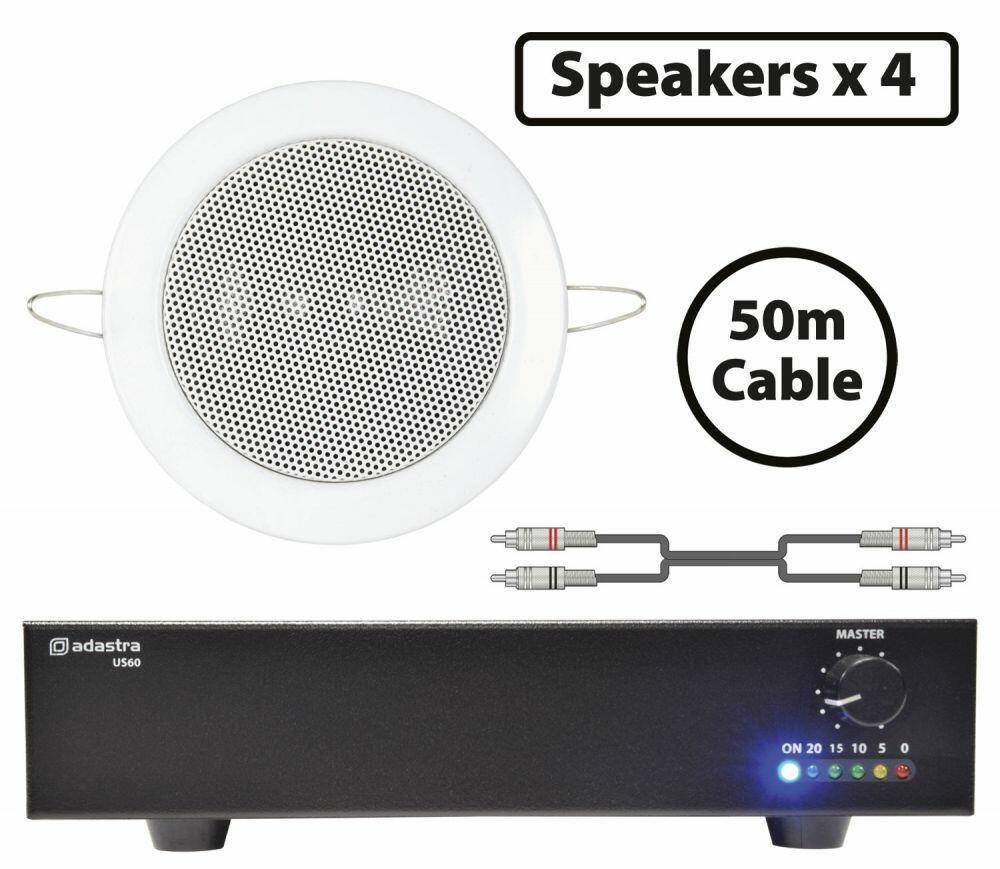

Adastra 4 x Mini Ceiling Loudspeaker 3 with Compact 60W Slave Amp 300.077UK

SKU: 300.077UK
Adastra

Add-on miini 100V ceiling speaker packages for commercial PA systems are designed to enable the installer to add sound for corridors, washrooms and smaller areas. US series slave amplifiers can be rack mounted in pairs or easily fixed to a wall or under a worktop and can accept the 100V speaker feed as a signal input. Simply connect the 100V input of the US slave amplifier to the last speaker in line as if it was another speaker and then power the mini ceiling speakers from it. Using lower tappings, more speakers can be addded to the amplifier, provided that the total combined speaker Watts is <90% its max output power. US-series 100V slave-amplifier (953.196UK, 953.199UK)

50m speaker cable supplied (804.381UK also available separately)

0.5m twin RCA link lead from mixer/amp output included (190.052UK)

US series slave amplifiers can operate from an existing 100V speaker feed

Note: use terminal block to extend speaker cable. Do not short + and - together

Amplifier, cables and speakers packed separately

4, 8 or 12 mini EC36V ceiling speakers (952.138UK)
