QTX RP12, 12 Channel DMX Switch Pack, 154.113

SKU: 154.113UK
QTX

The RP12 is a relay pack with 12 IEC power outputs. Each output is controlled by an individual relay which turns the power on and off saving energy and preserving the lifespan of your light effects. This is ideal for use with low voltage LED light effects which, when used with dimmer packs, turn on and off randomly with the pulse voltage sent through the system. These outputs can be turned on or off using the controls on the digital LED front panel display or by DMX which can be configured so that there are 12, 6, 3, 2 or 1 channel DMX allowing you to suit the need for your setup.

12 individual IEC outputs

12, 6, 3, 2 or 1 channel DMX

Digital LED display on the front panel

DMX or manually controlled

19 rack mountable

Power supply 230Vac, 50Hz

Maximum current input 30A

Maximum current per channel 10A

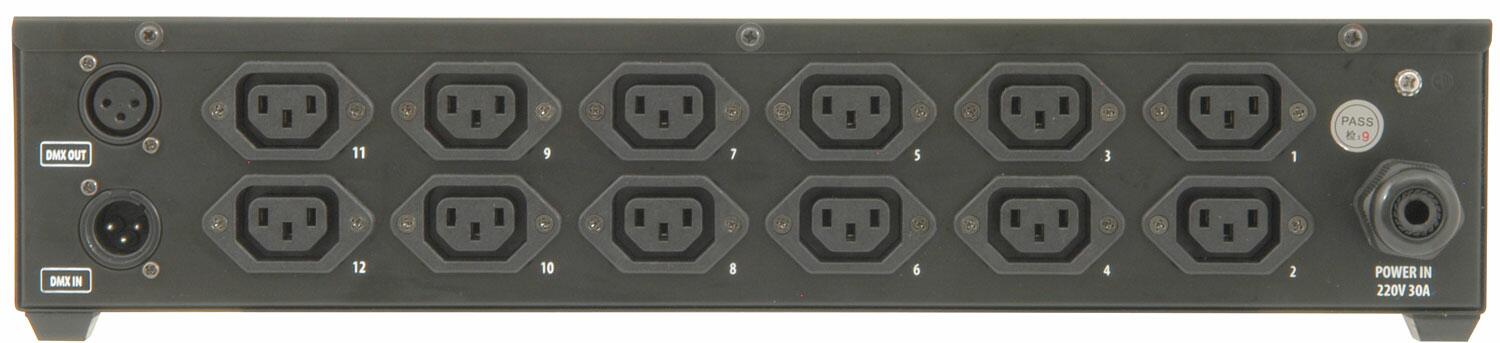

IEC outputs 12

Dimensions 440 x 205 x 88mm

Weight 3.8kg
