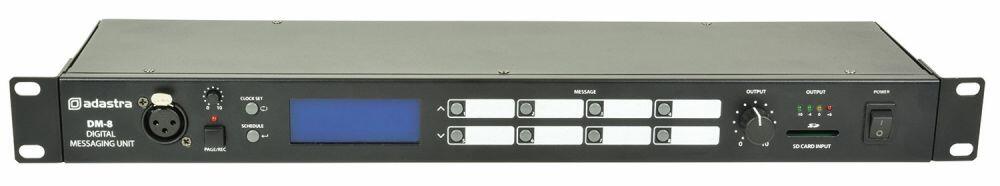

Adastra DM-8 DM-8 Digital Messaging Unit - 953.053UK

SKU: 953.053UK
Adastra

1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or directly recorded on the DM-8. Schedules are also stored on the SD media as a separate file, which can be edited with a PC and stored for backup. Separate SD cards may be saved with different audio messages and schedules and swapped for different routines. A mic/line input can be used for recording or for live announcements which can override SD playback. A BGM line input is provided for background music playback with its own level control and is muted when messages are playing or during paging. Up to 99 schedules can be programmed to play a particular audio file from the SD card, set by 24 hour time and day(s) of the week. The DM-8 can be added to any sound system to provide automated playback of timed announcements, music or audio alerts.

Up to 99 audio tracks stored on SD card

Up to 99 schedule events stored on SD card

Schedule file editable using free PC software

BGM line input for background music

Mic/Line input for recording or live announcements

Power supply100-240Vac, 50/60Hz or 24Vdc

FuseT1AL 250V

InputsPaging mic/line (XLR or terminals), BGM (RCA)

OutputMono balanced terminal or unbalanced RCA

Audio sourceInternal SD card player

Time setting99 programmable schedules - 24 hour + day(s) setting

Mic/line channel controlsMic/Line level, Phantom power on/off

Phantom power+20V

Input impedance2.2k Ohms (mic/line)

ControlsPage/Rec, Mic, Clock Set, Schedule, Message 1-8, Output, Power on/off

TriggerMessage 1-8, Stop & Ground contacts

SD card requirements4-32GB FAT32 (full size or with adaptor)

Dimensions483 x 150 x 44mm

Weight1.65kg
